DHTA 1800S Insulated aerial platform
DHTA 1800S
Insulated aerial platform
16.9M Working
Height
11.6M Working
Radius
200Kg Working
Capacity
The most useful working range to low-voltage live line work

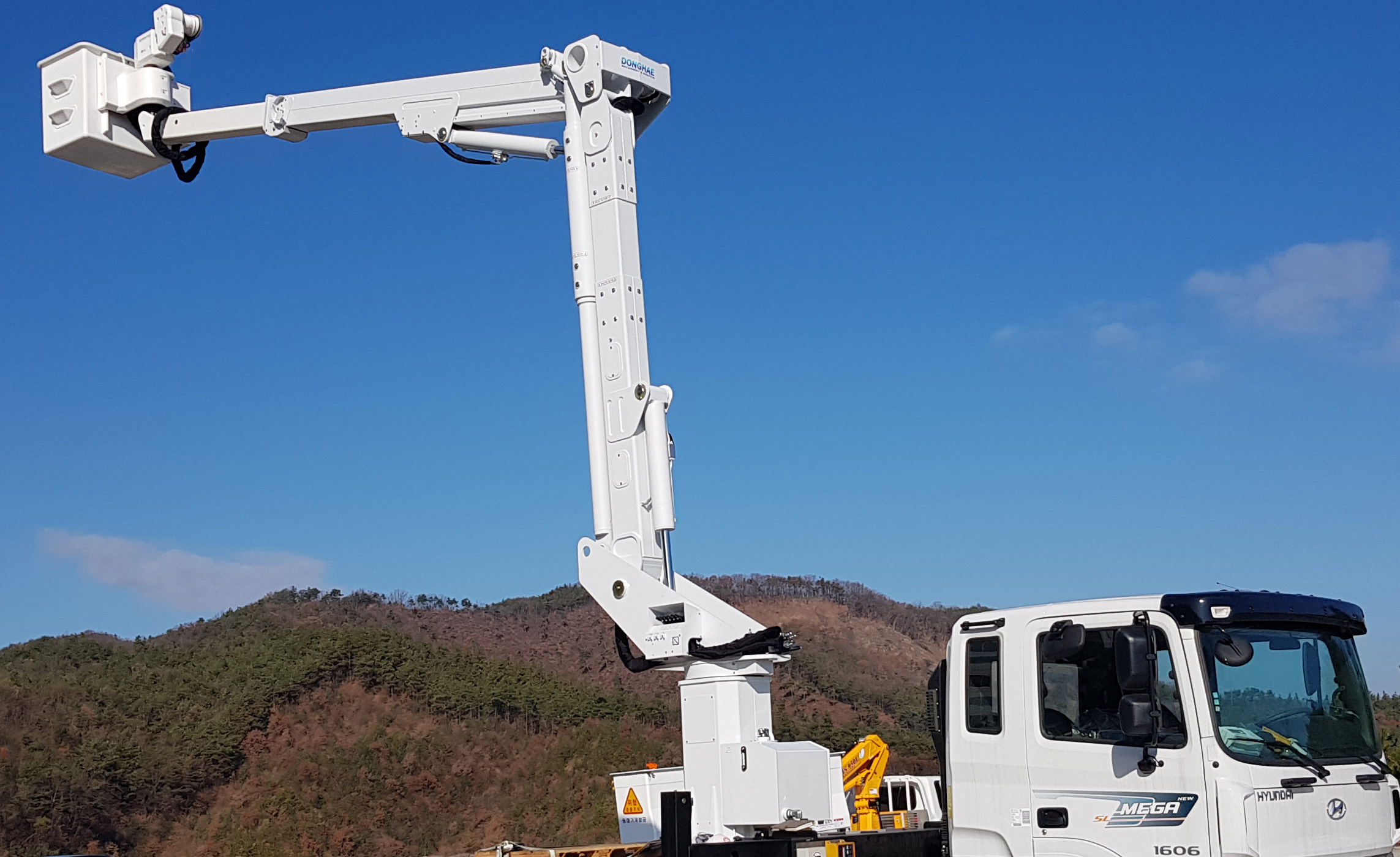

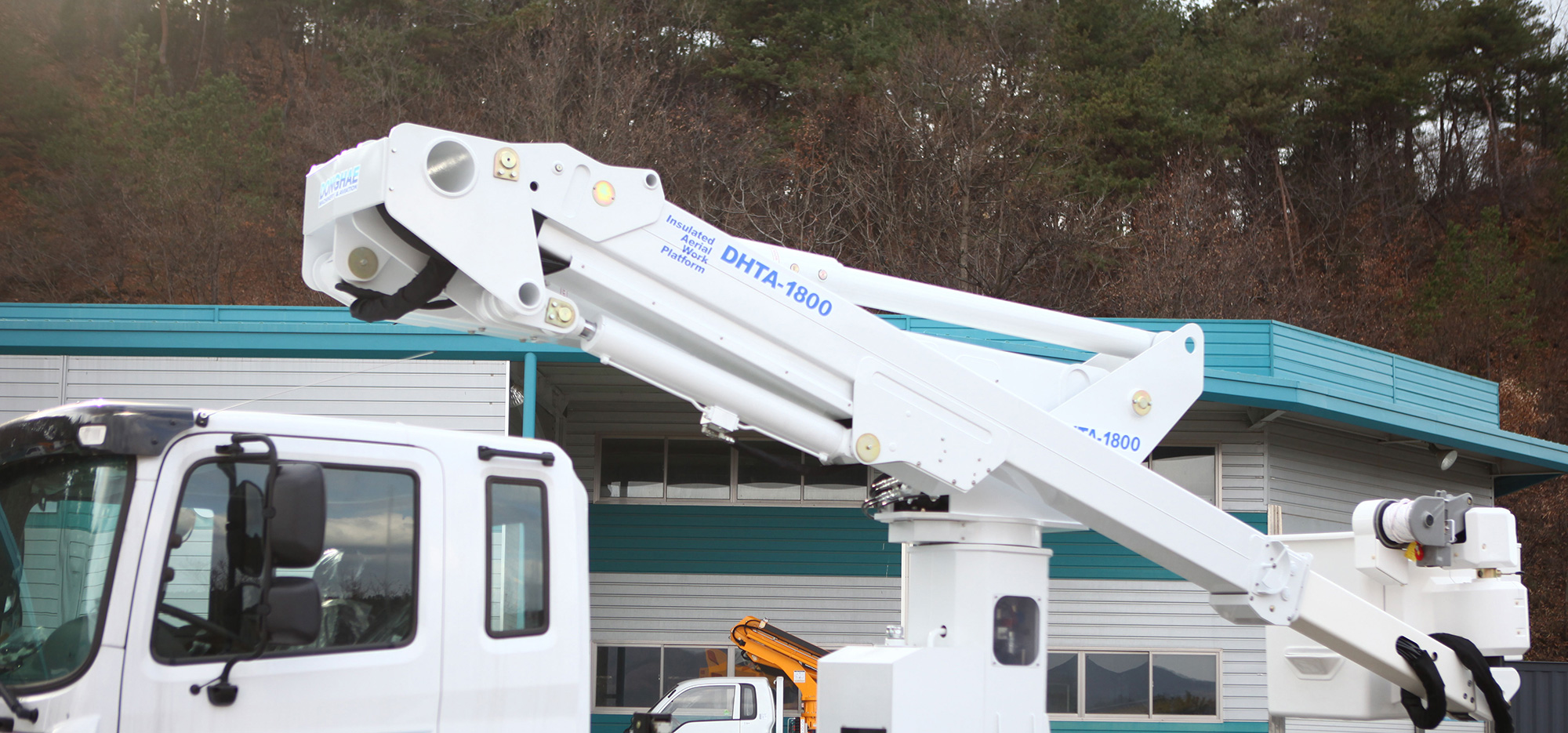

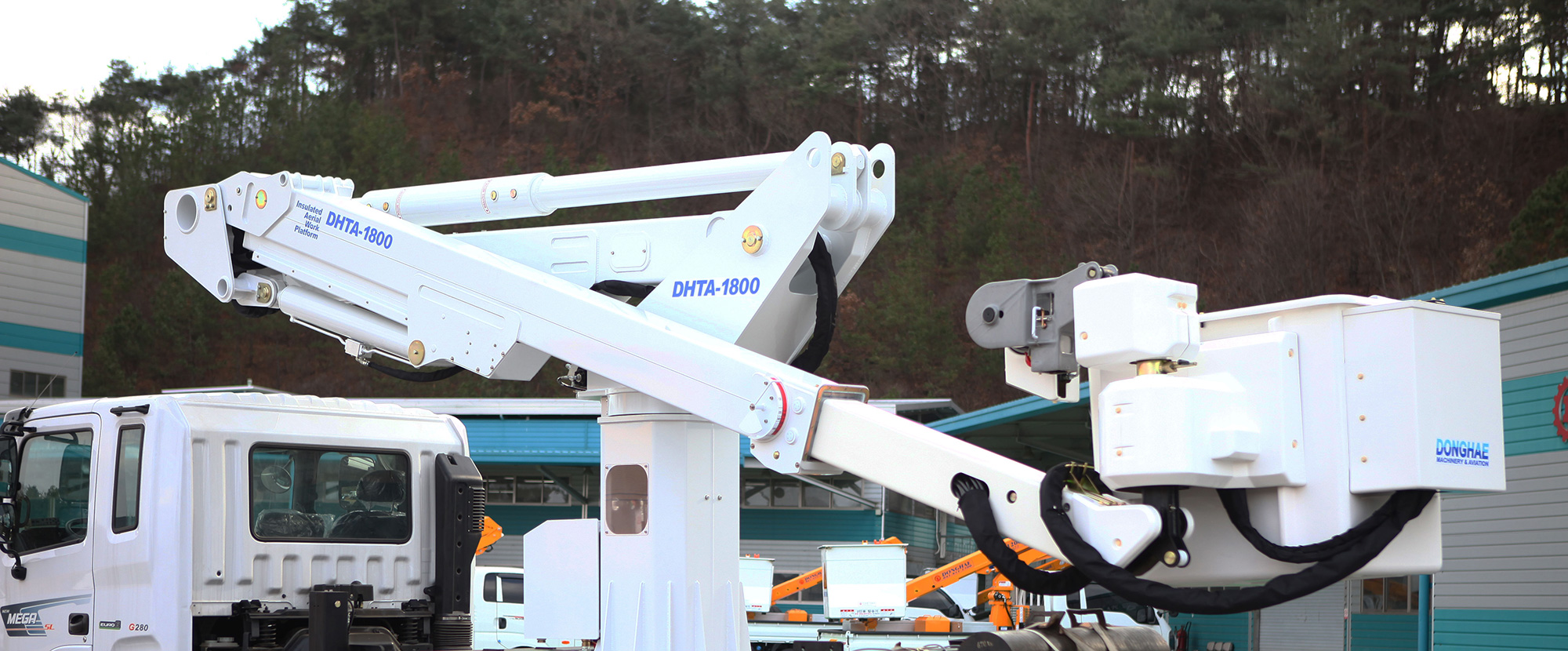

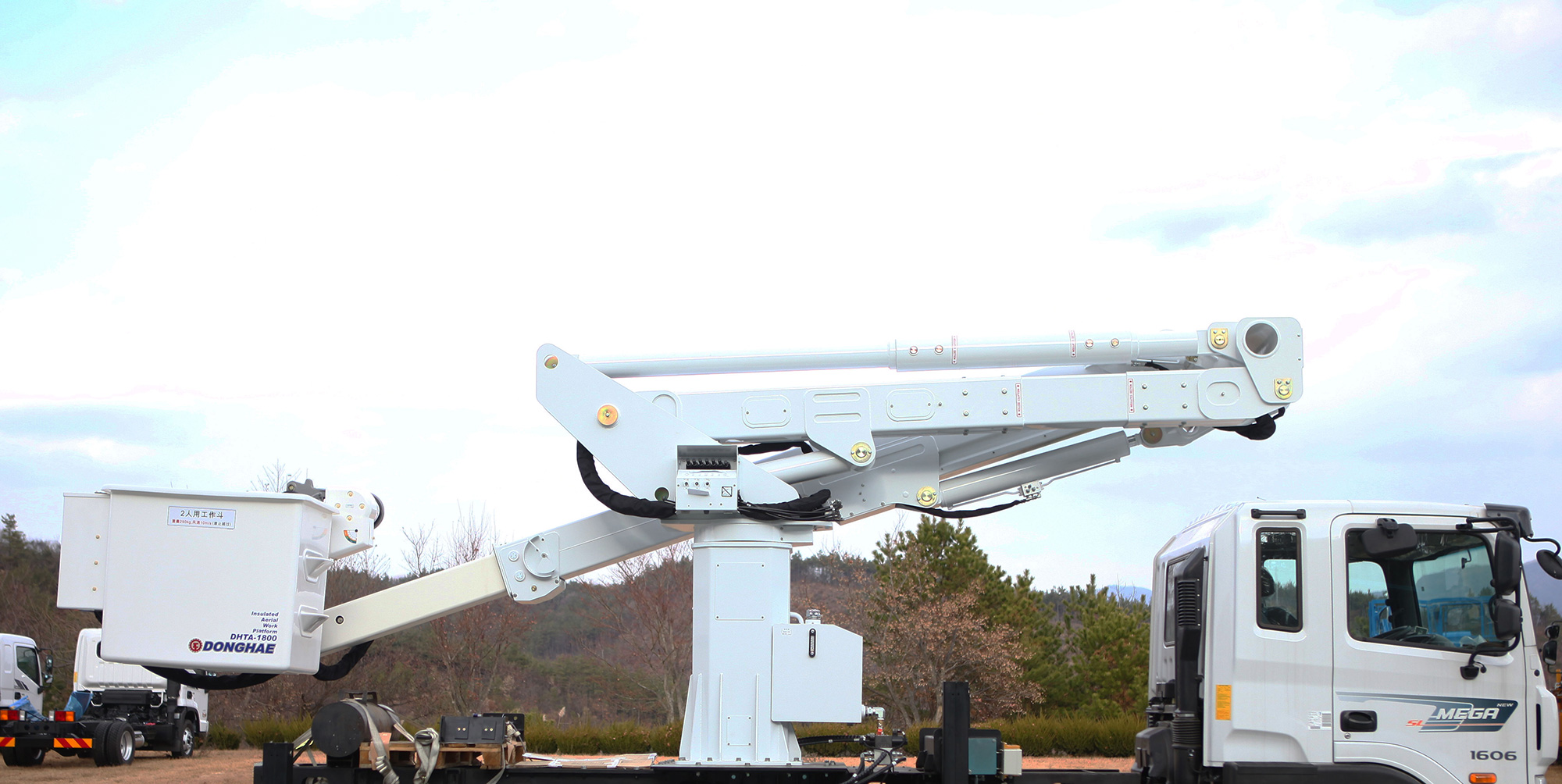

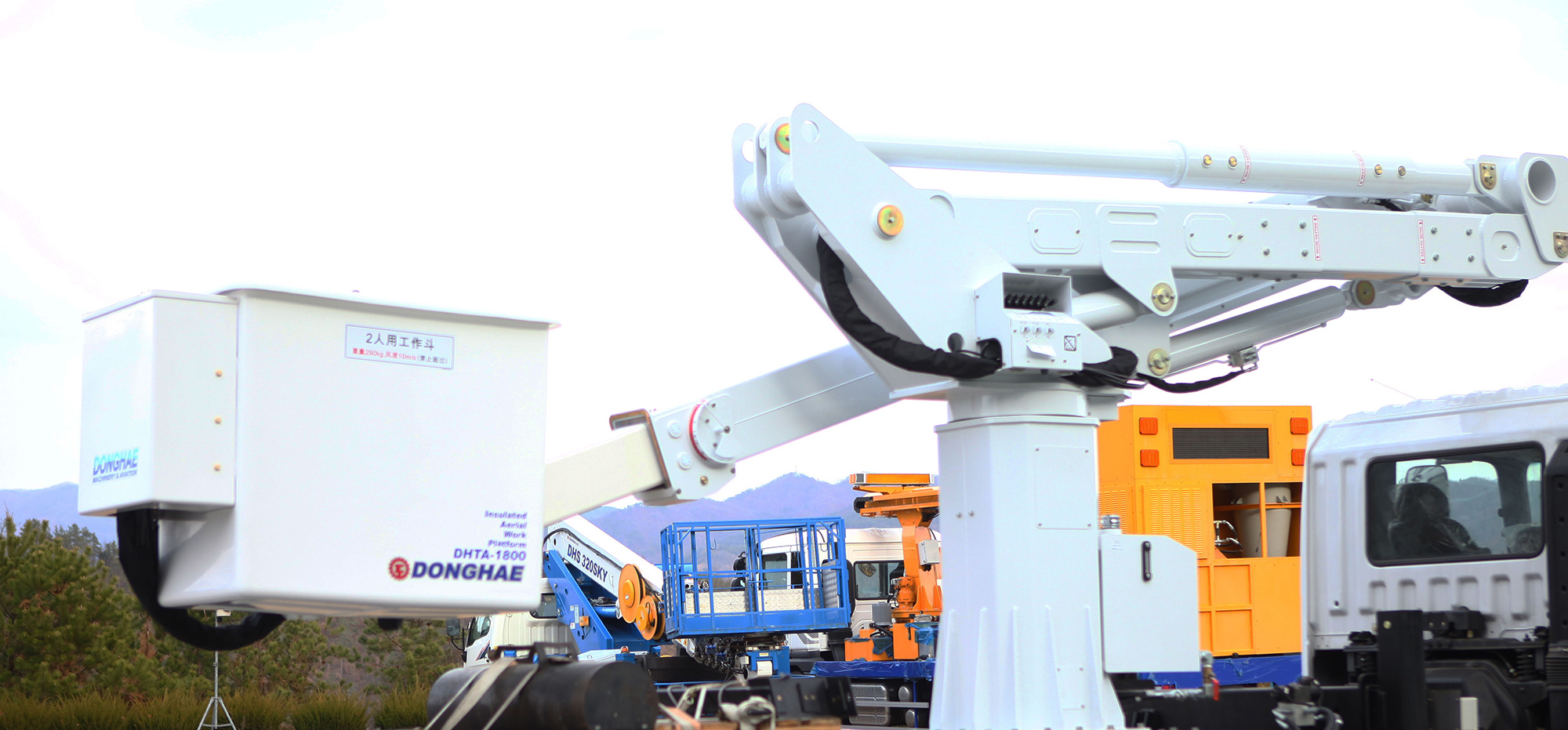

Vehicle Photo

Insulated aerial platform DHTA 1800S

Outline
  • Performance
    The most useful working height to live line work
  • Articulated boom system
    Safe to approach working location

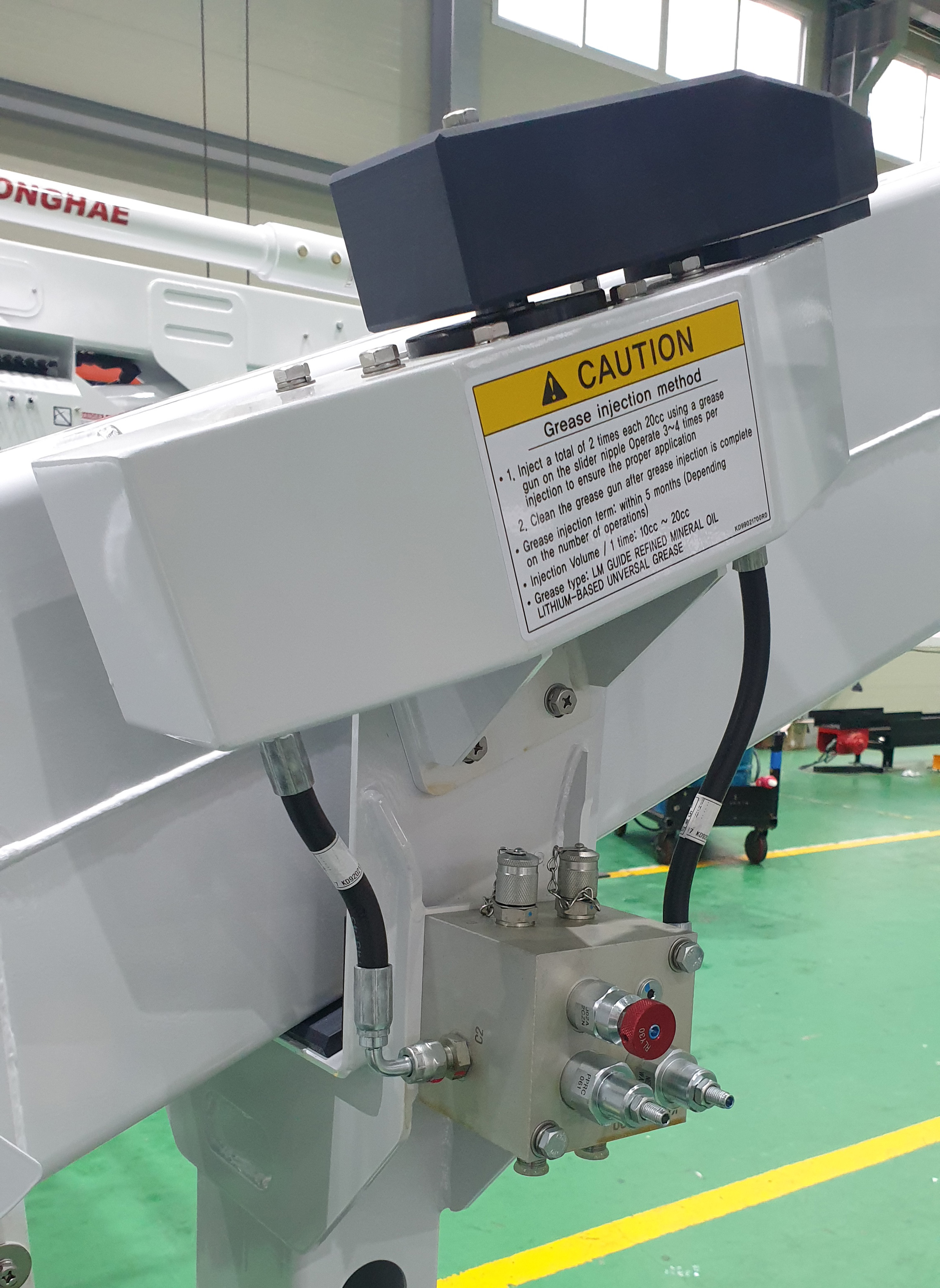

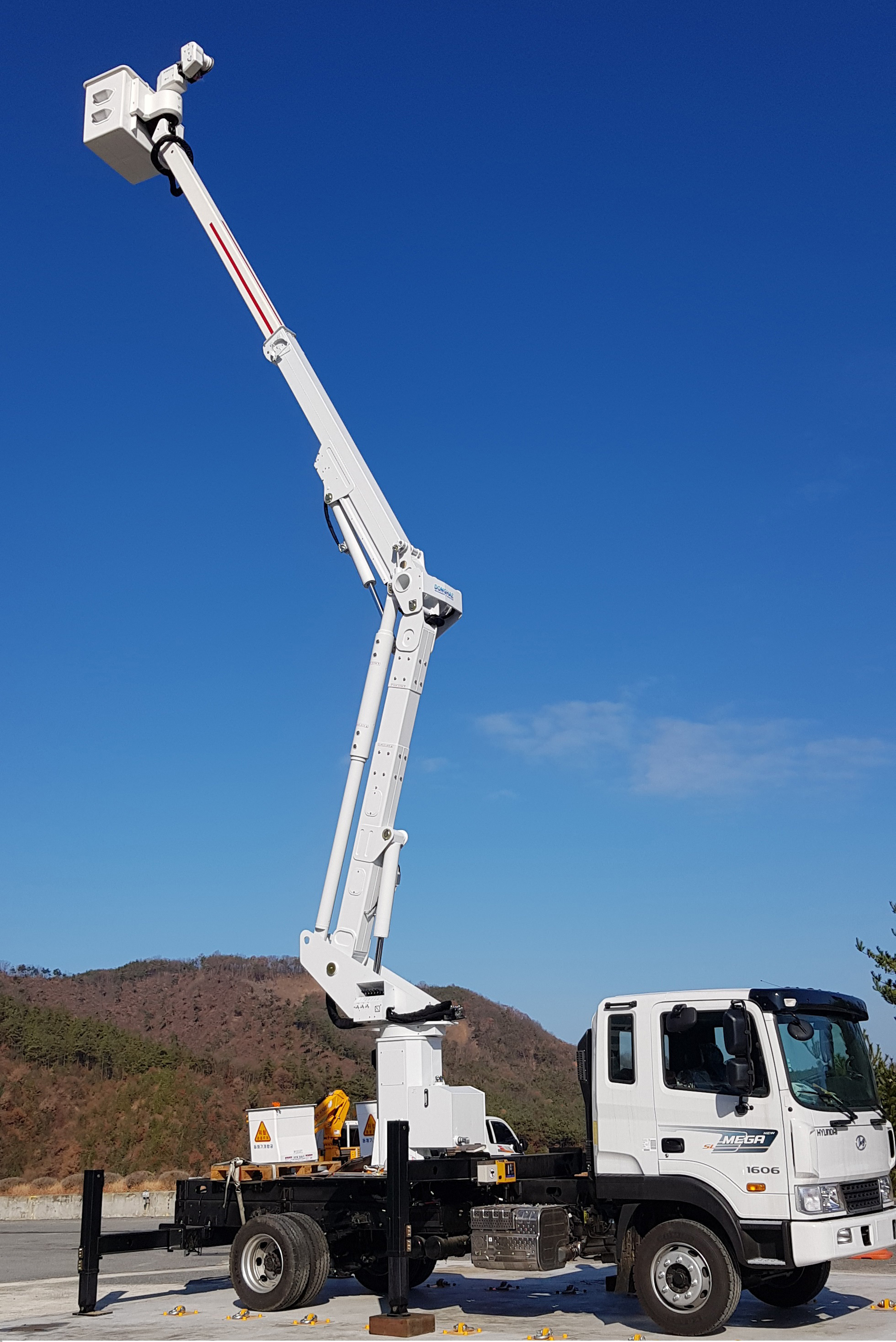

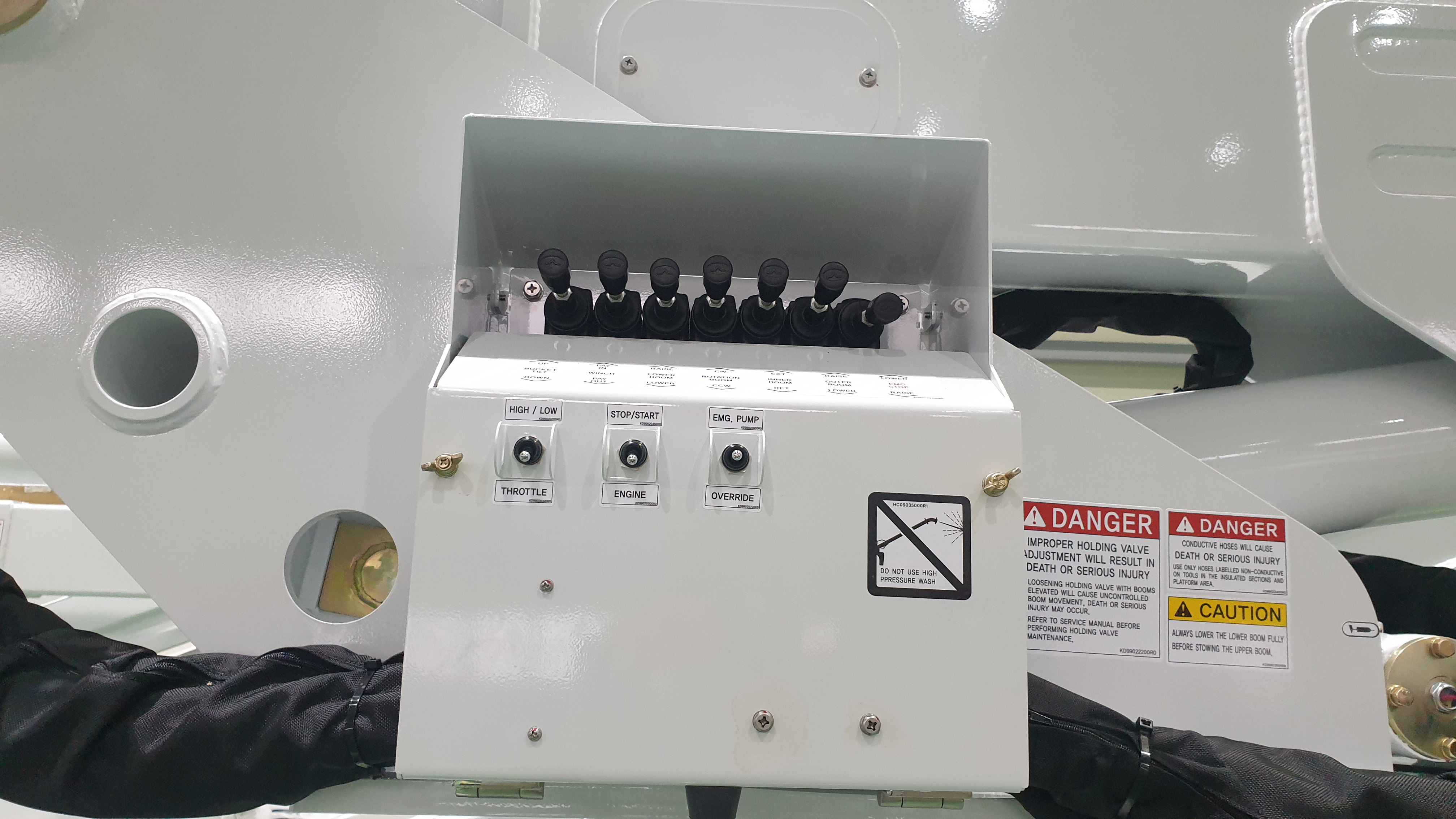

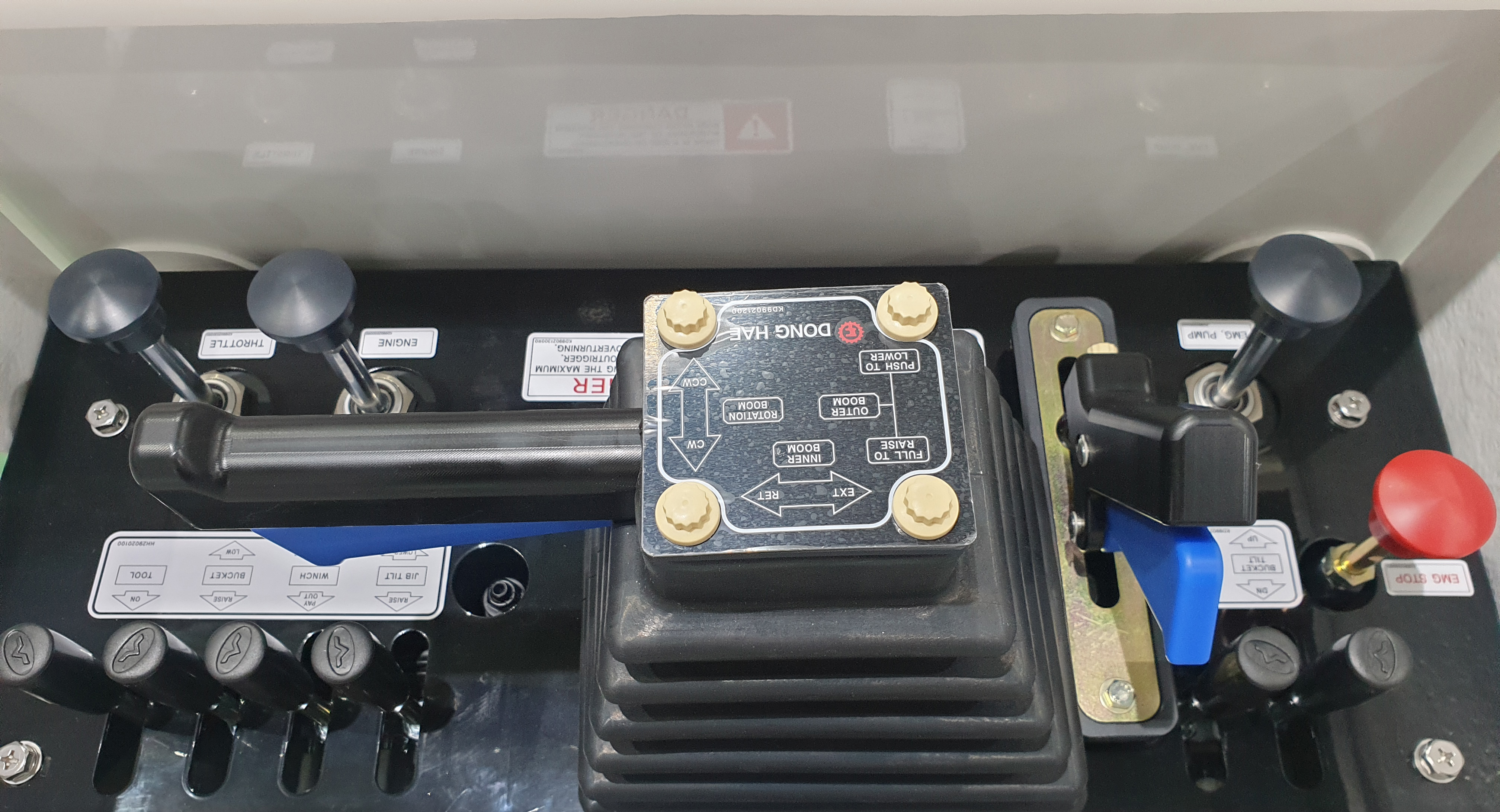

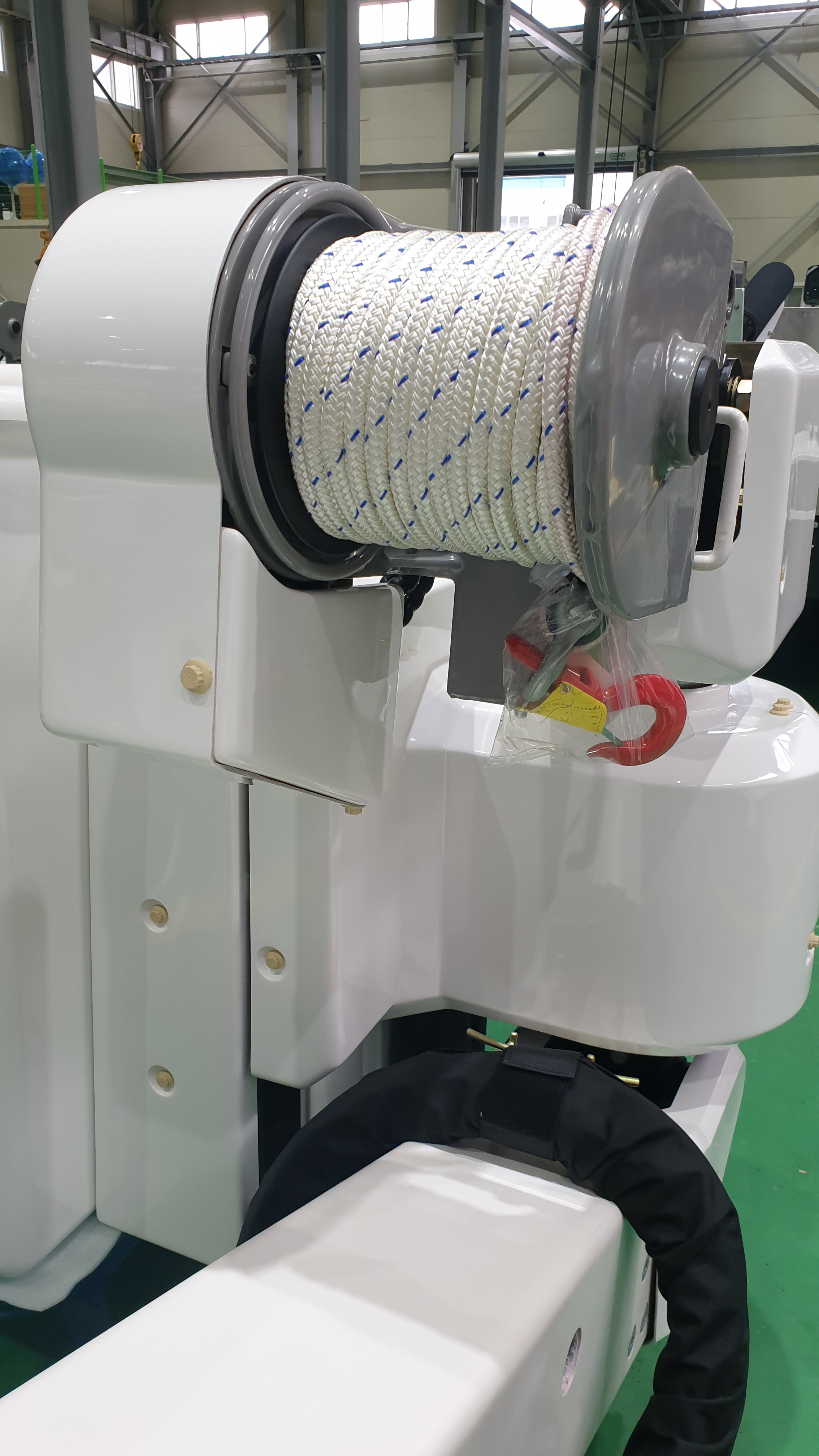

Exterior

The most useful working range to live line work

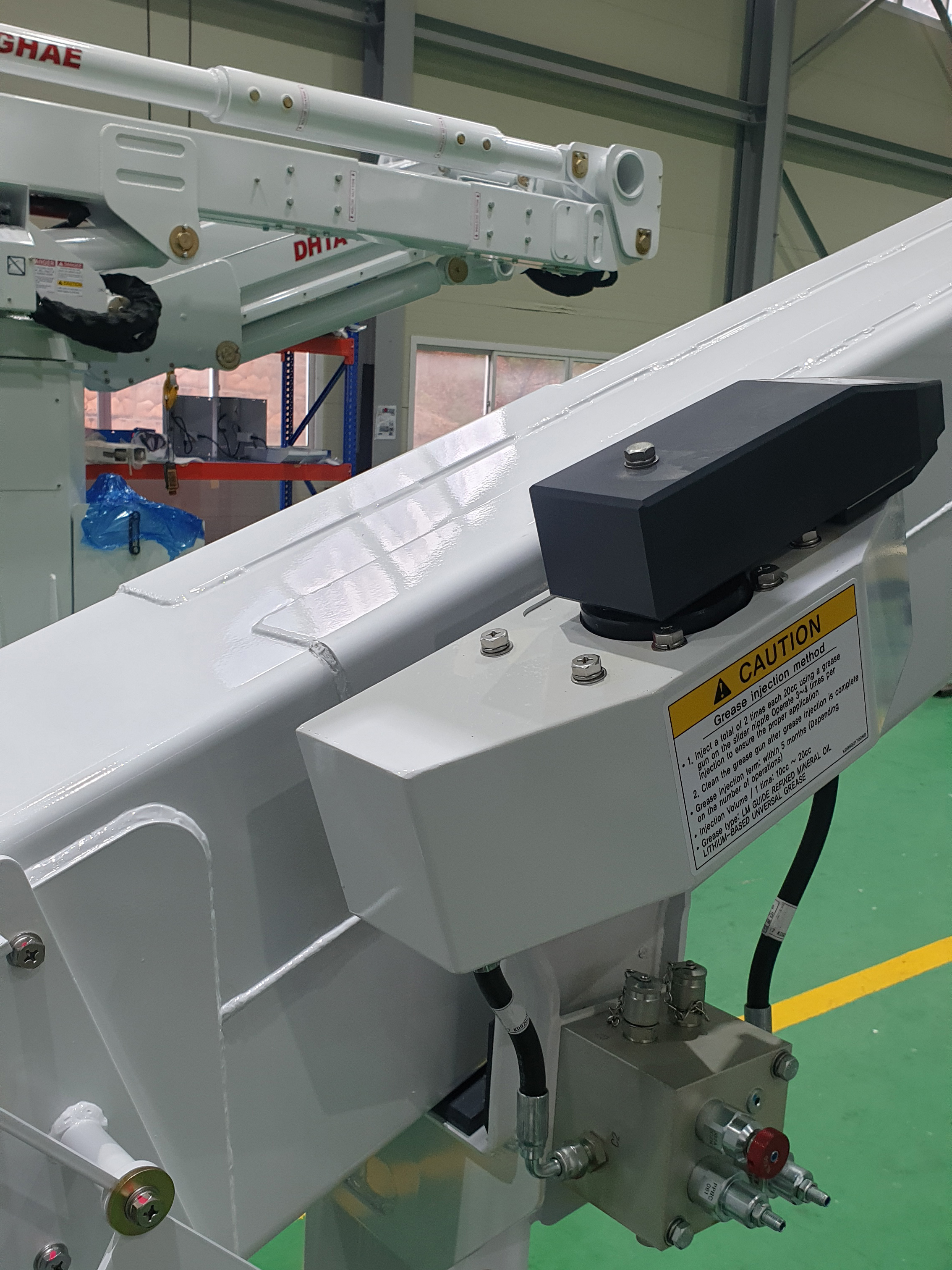

Safety Sensor

Application of safety sensor for safety aerial works

Outriggers
Stable A-type stabilizer
Boom storage holing sensor(option)
Holding boom to prevent from boom shaking during driving
Specification
  • Mounting chassis
    * customized to local chassis
    5t payload
  • Chassis dimension
    * customized to local chassis
  • Working range
    Height(ground to bucket floor)
    16.9M
    Max. working radius
    11.6M
  • Slewing angle
    360 continuous
  • Boom section
    2section
  • Bucket capacity
    Capacity
    2person
    Loading
    200kg
    Rotation
    ±90°
  • Outrigger type
    A-type FRT/RR
  • Operation system
    Upper/lower operation system
  • Arm boom
    X
  • lifting capacity
    490kg
  • Test voltage
    Boom test voltage 100KV /3min
    Bucket outer test voltage 20KV / 3min
    Bucket inner test voltage 50KV / 3min
  • Insulation category
    C
