DHT 160S Insulated aerial platform
DHT 160S
Insulated aerial platform
15.8M Working
Height
12M Working
Radius
200Kg Working
Capacity
The most useful working range to live line work

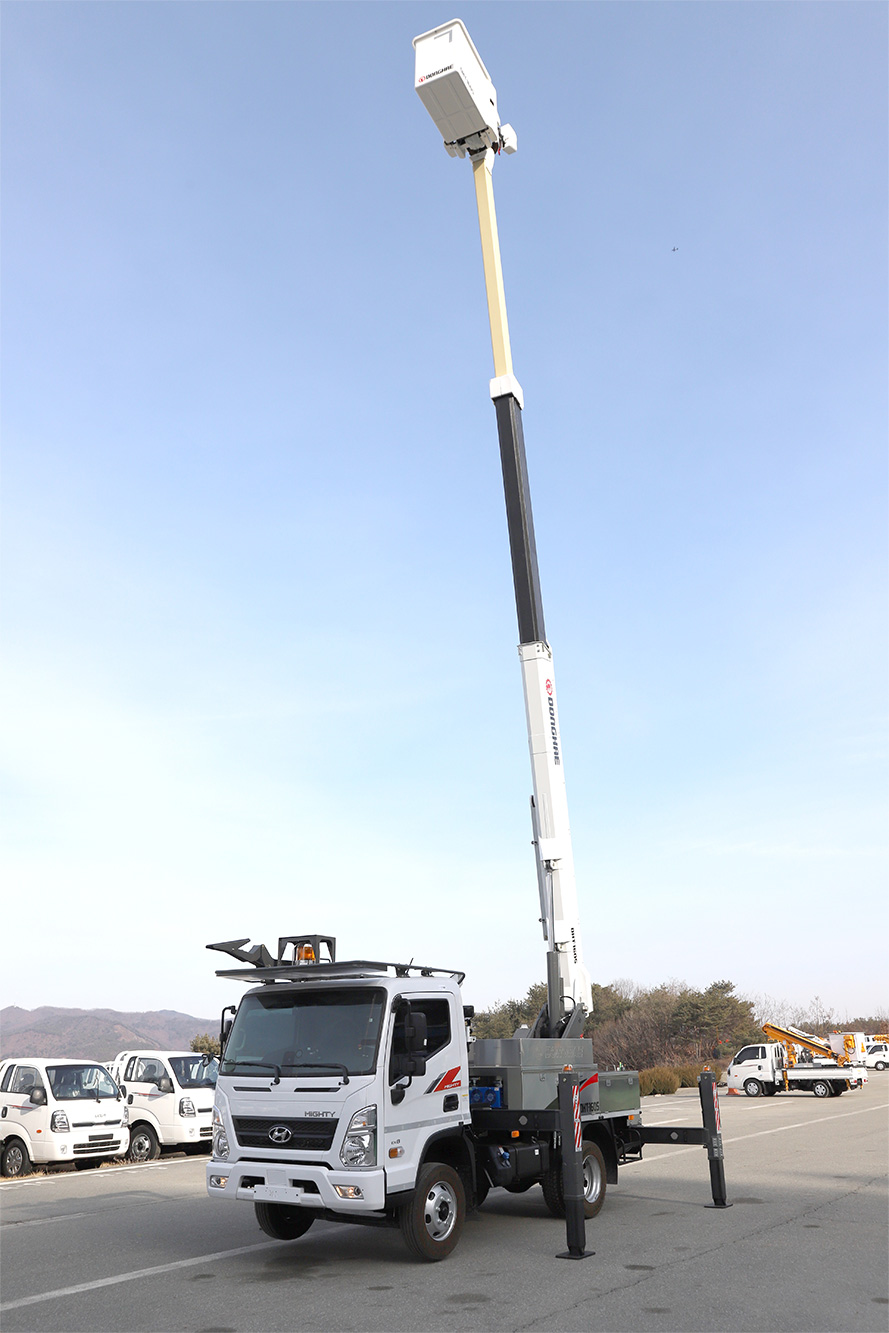

Vehicle Photo

Insulated aerial platform DHT 160S

Outline
  • Performance
    The most useful working height to live line work
  • Safety device
    Acquires 2021 KCSs(Protective device of Korea regulation)
  • Safty device
    Apply various sensors to check safety status during work
  • Convenience device
    Developed and installed own to check and control operating system, installed tool box at driver/passenser seat, inverter, harness storage

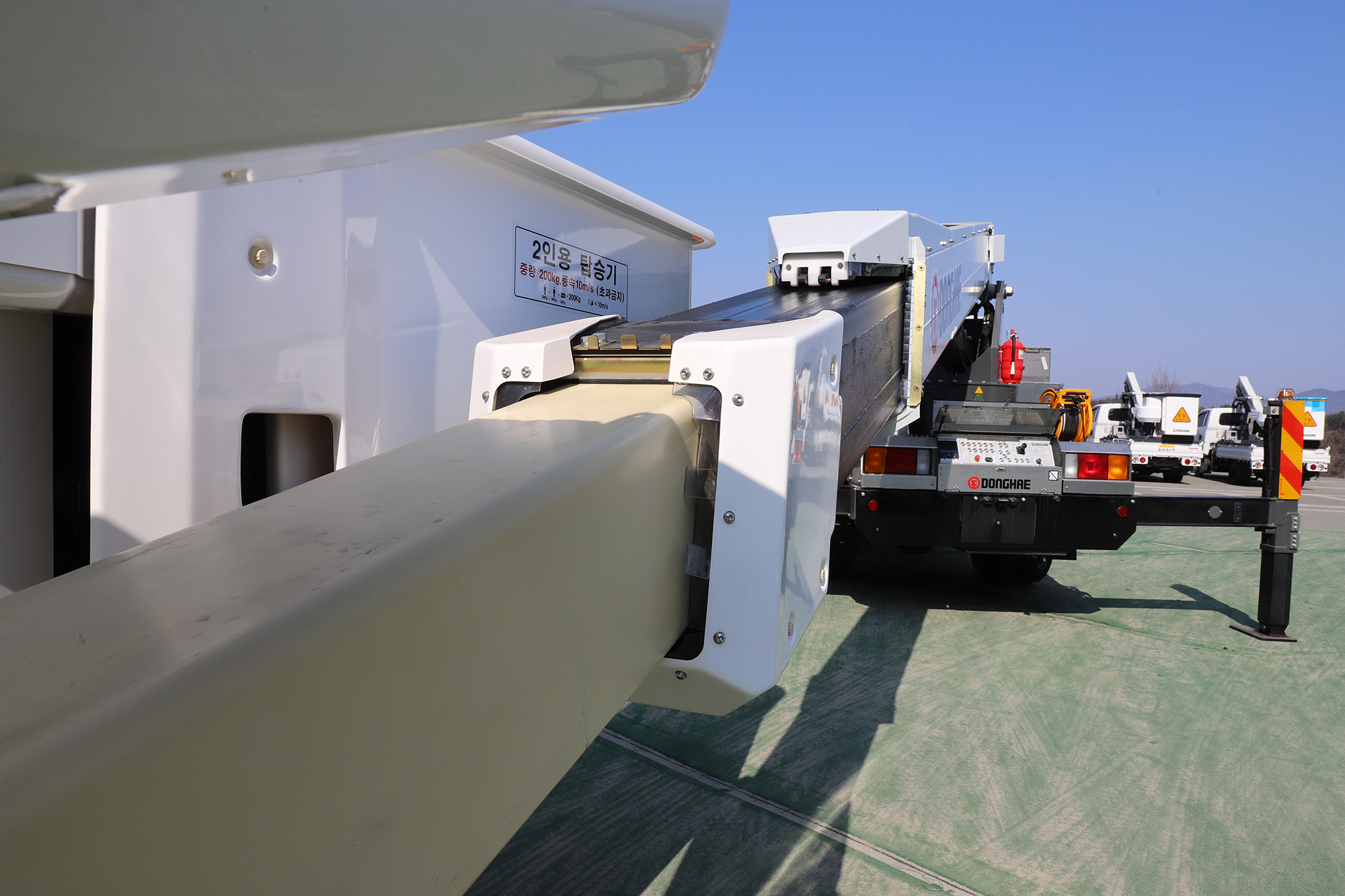

Exterior

The most useful working range to live line work

Safety Sensor

Application of safety sensor for safety aerial works

Remote-controlled system(option)
Operating outrigger in cabin
Indicator
Displays overall operation status
Specification
작업범위도
  • Mounting chassis
    * customized to local chassis
    3.5t payload
  • Chassis dimension
    * customized to local chassis
  • Working range
    Height(ground to bucket floor)
    15.8M
    Max. working radius
    11.8M
  • Slewing angle
    360 continuous
  • Boom section
    3section
  • Bucket capacity
    Capacity
    2person
    Loading
    200kg
    Rotation bucket
    ±100°
  • Outrigger type
    H-type FRT/RR
  • Operation system
    Upper/lower operation system
  • Arm boom
    X
  • lifting capacity
    490kg
  • Test voltage
    Boom test voltage 100KV /3min
    Bucket outer test voltage 20KV / 3min
    Bucket inner test voltage 50KV / 1min
  • Insulation category
    C
