DHT 150L Insulated aerial platform
DHT 150L
Insulated aerial platform
14M Working
Height
8M Working
Radius
200Kg Working
Capacity
The most useful working range to low-voltage live line work

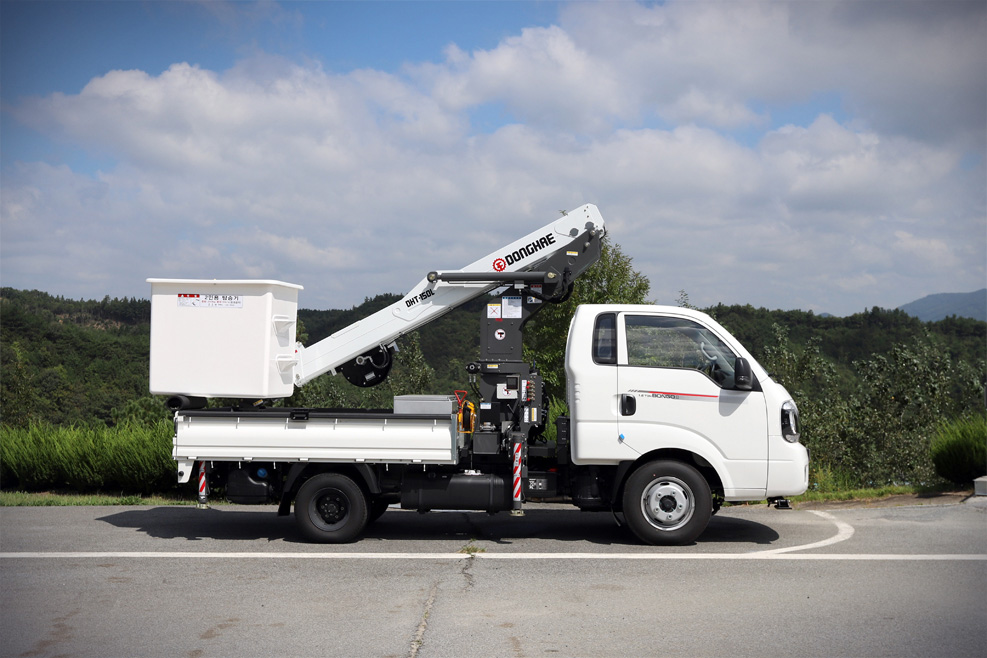

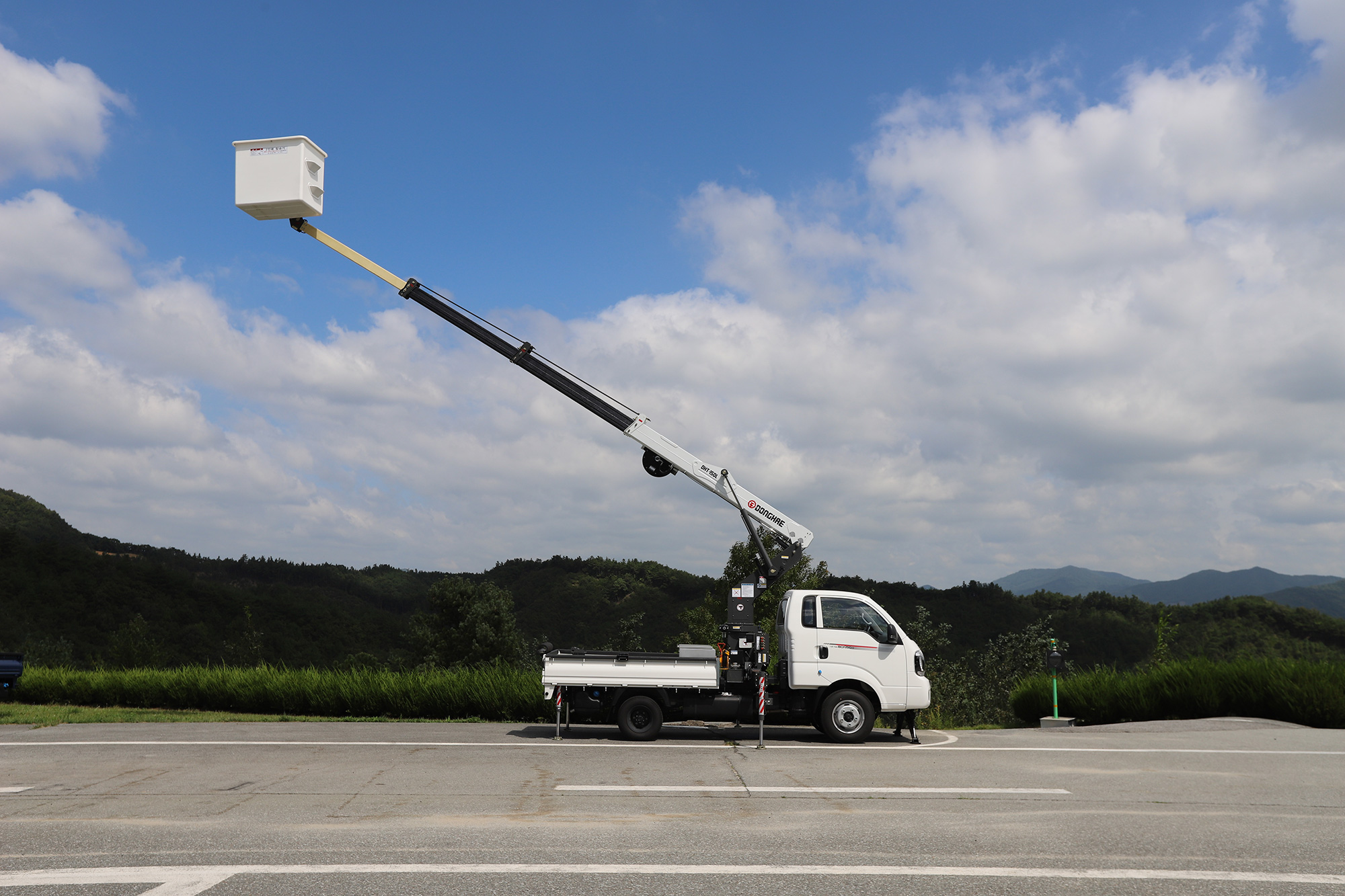

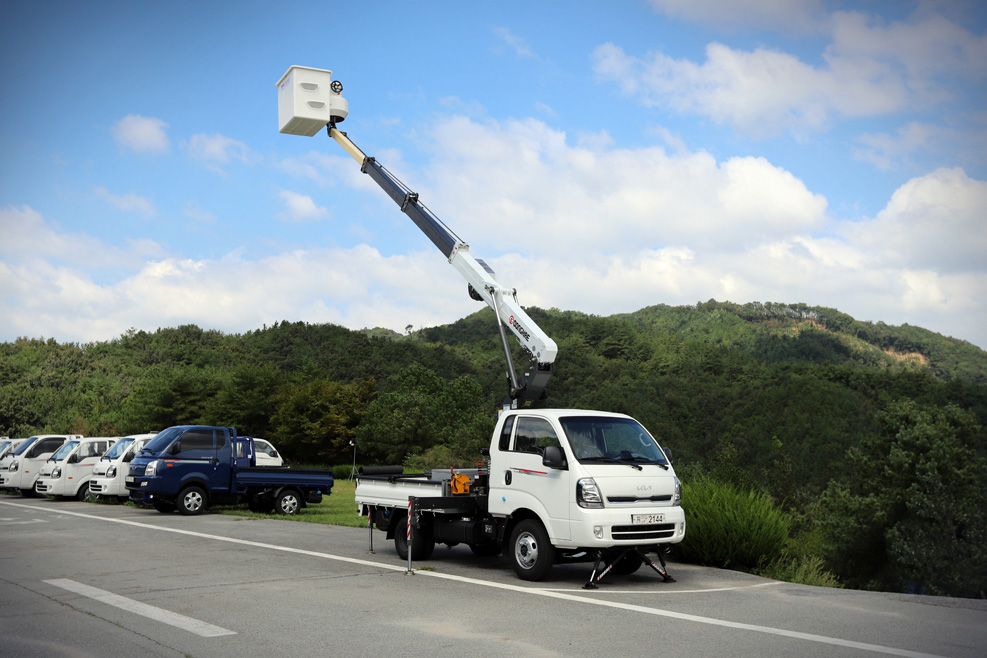

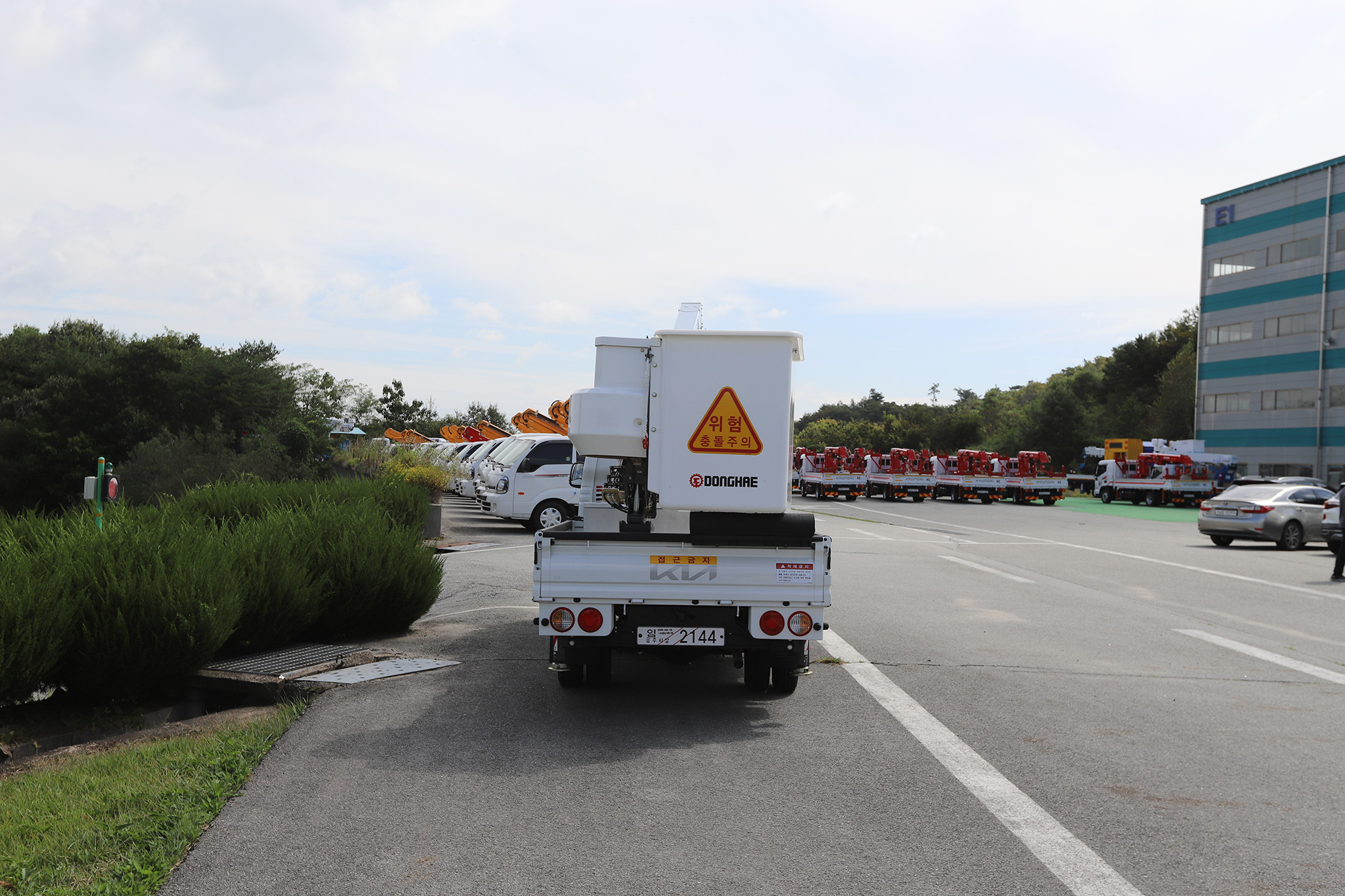

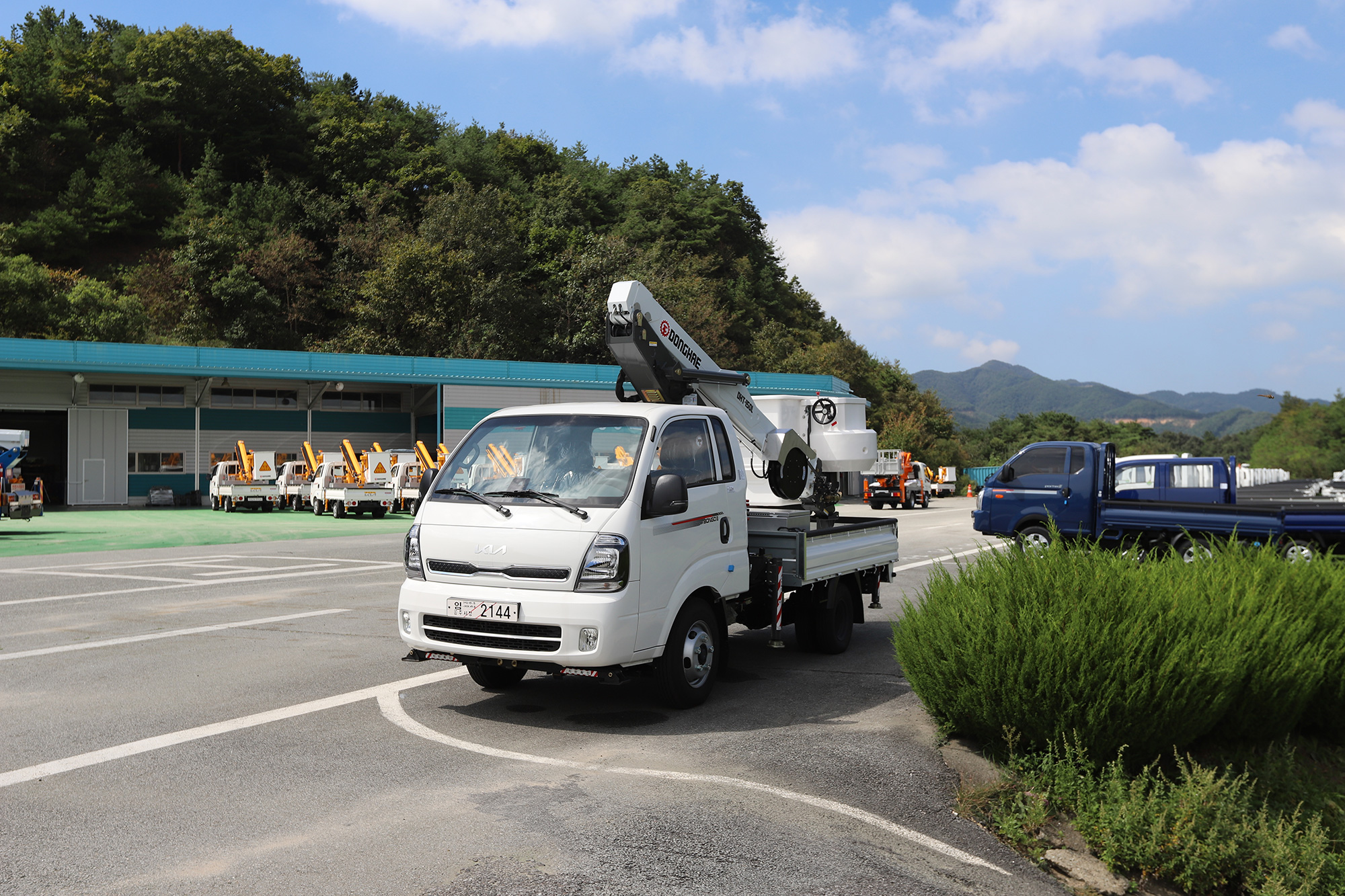

Vehicle Photo

Insulated aerial platform DHT 150L

Outline
  • Performance
    Designed to mounting on small truck at low-voltage live work
  • Safety device
    Acquires 2022 KCSs(Protective device of Korea regulation)
  • Safty device
    Stable working with interlock system, smart cushion, pre-speed control system
  • Convenience device
    Offer convenience with intergrates know-how and technology

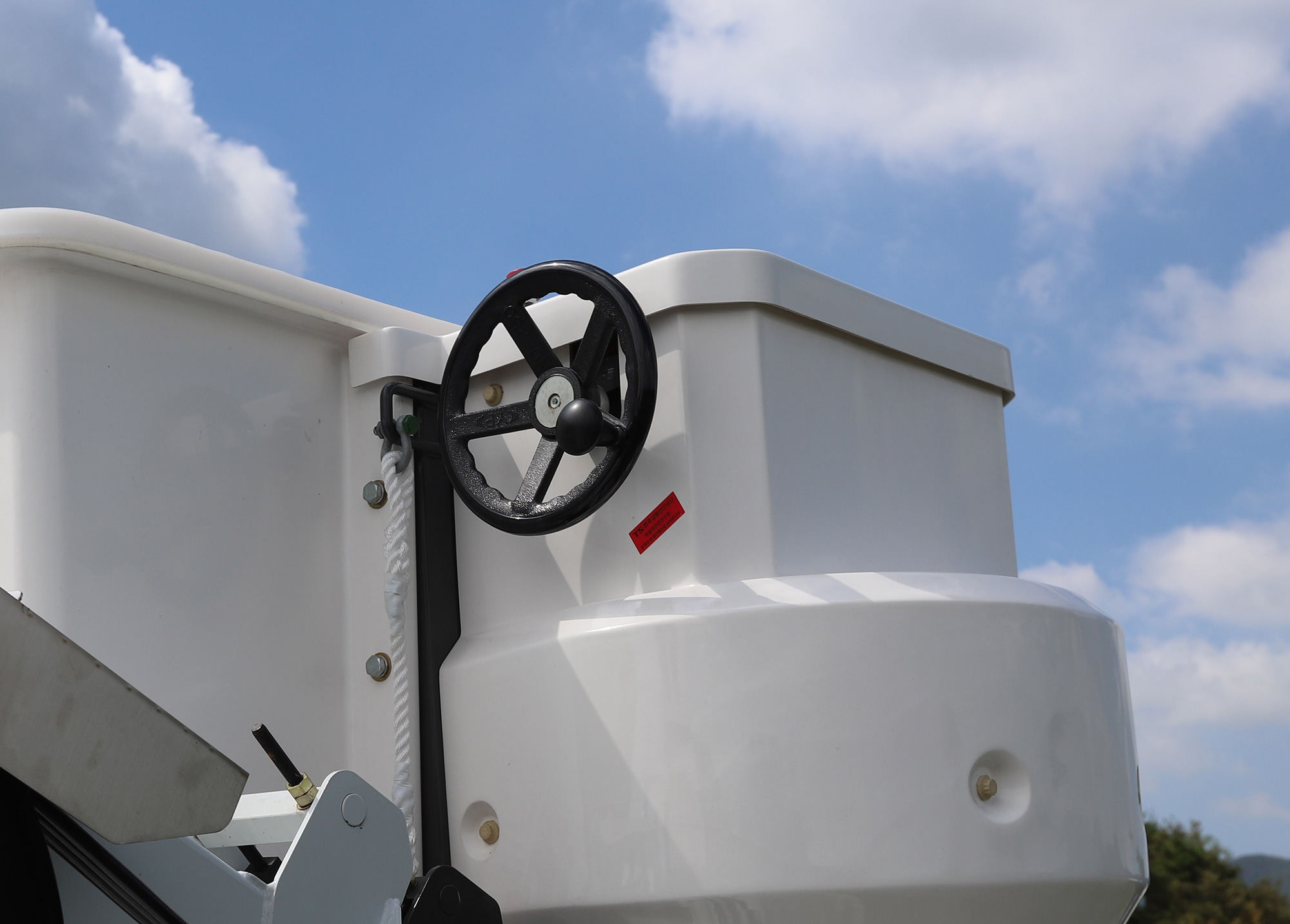

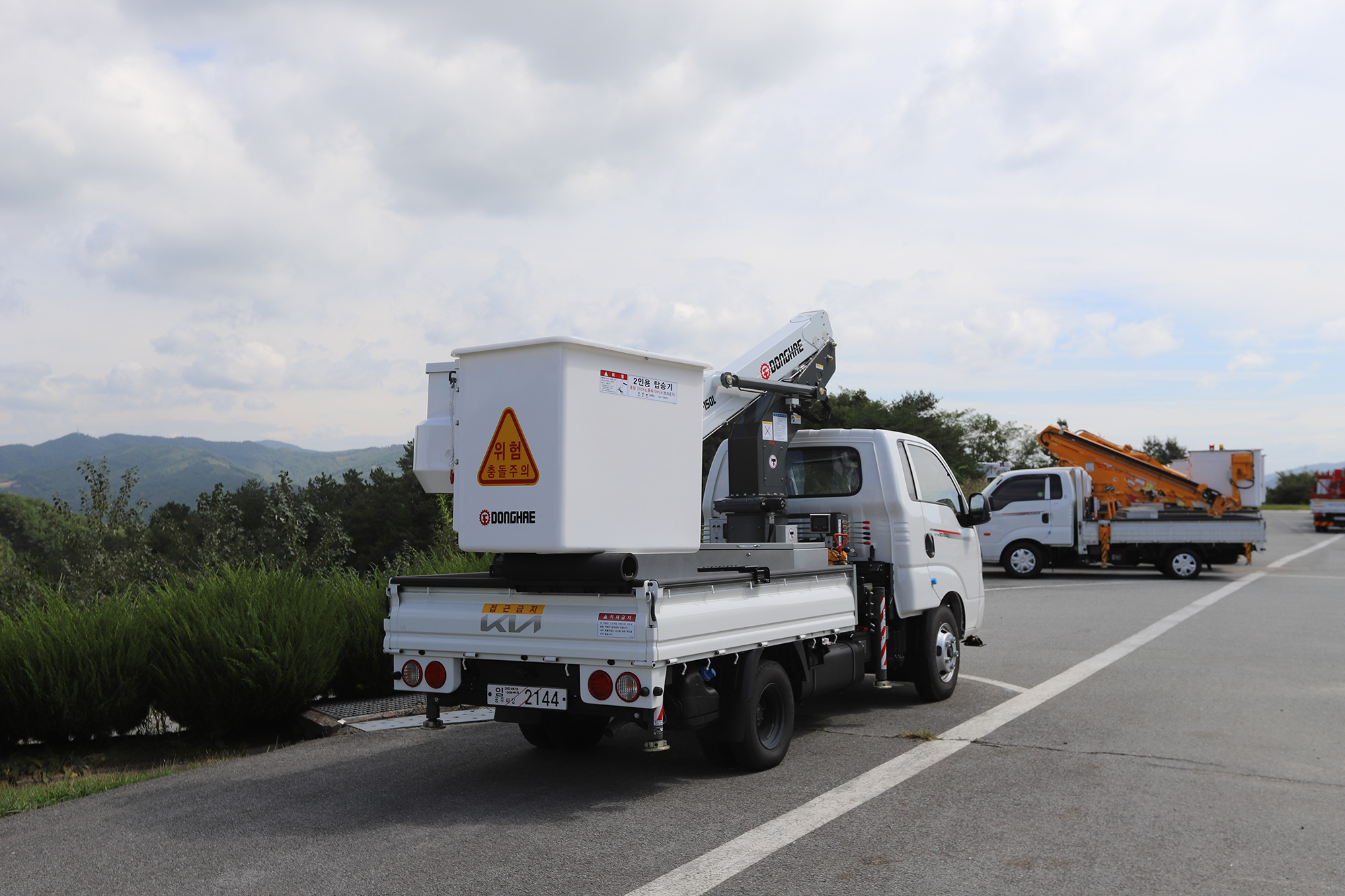

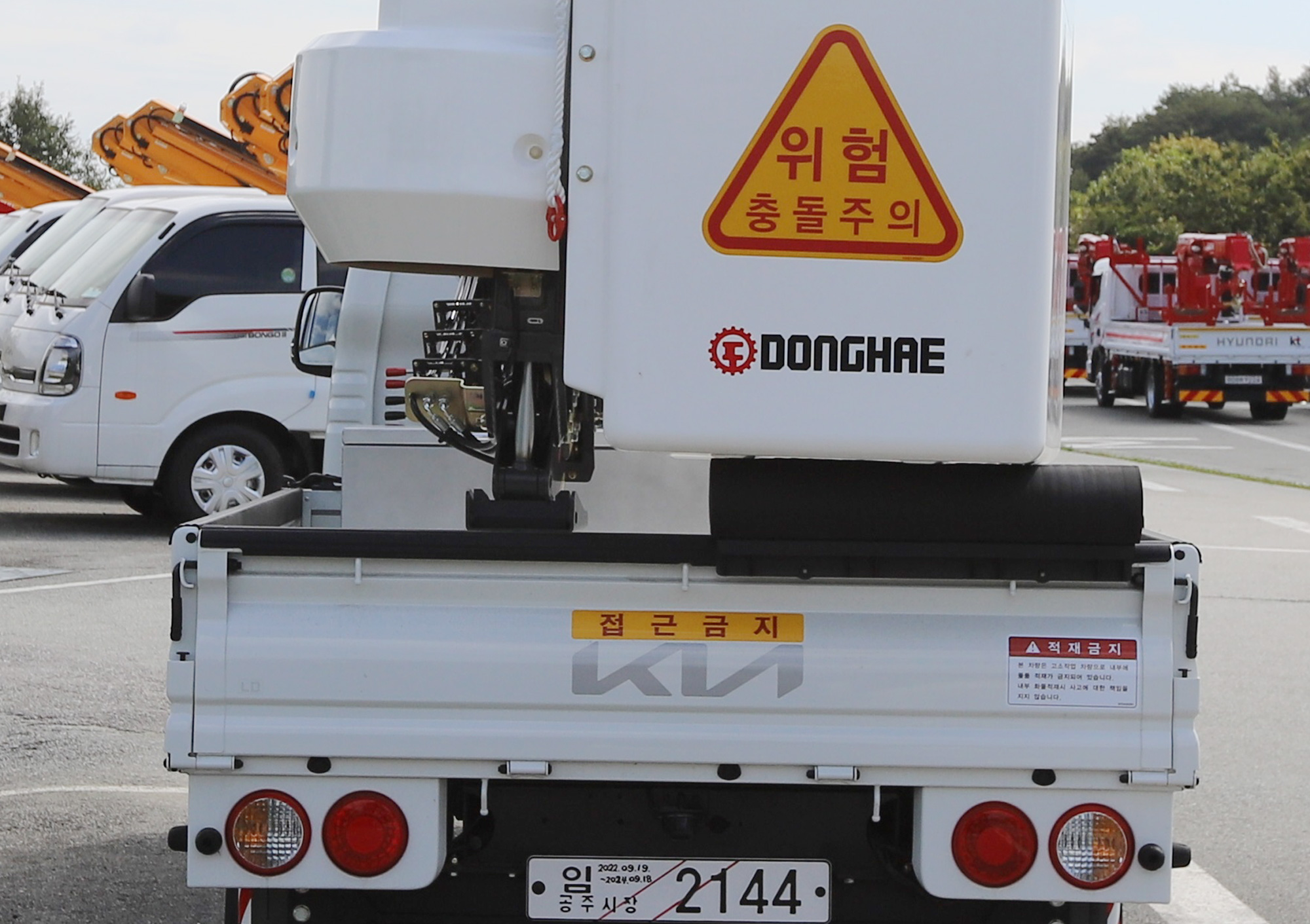

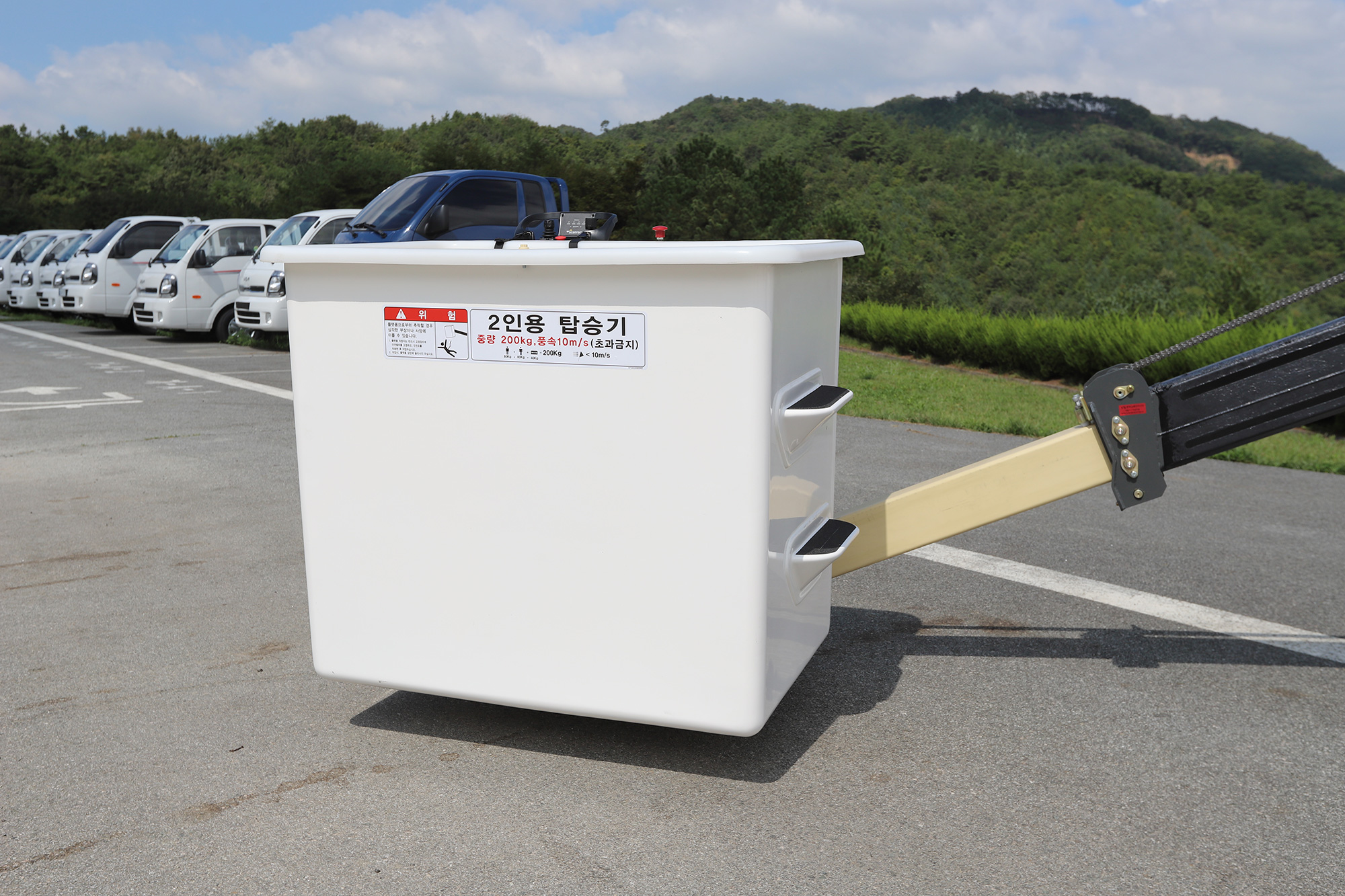

Exterior

The most useful working range to live line work

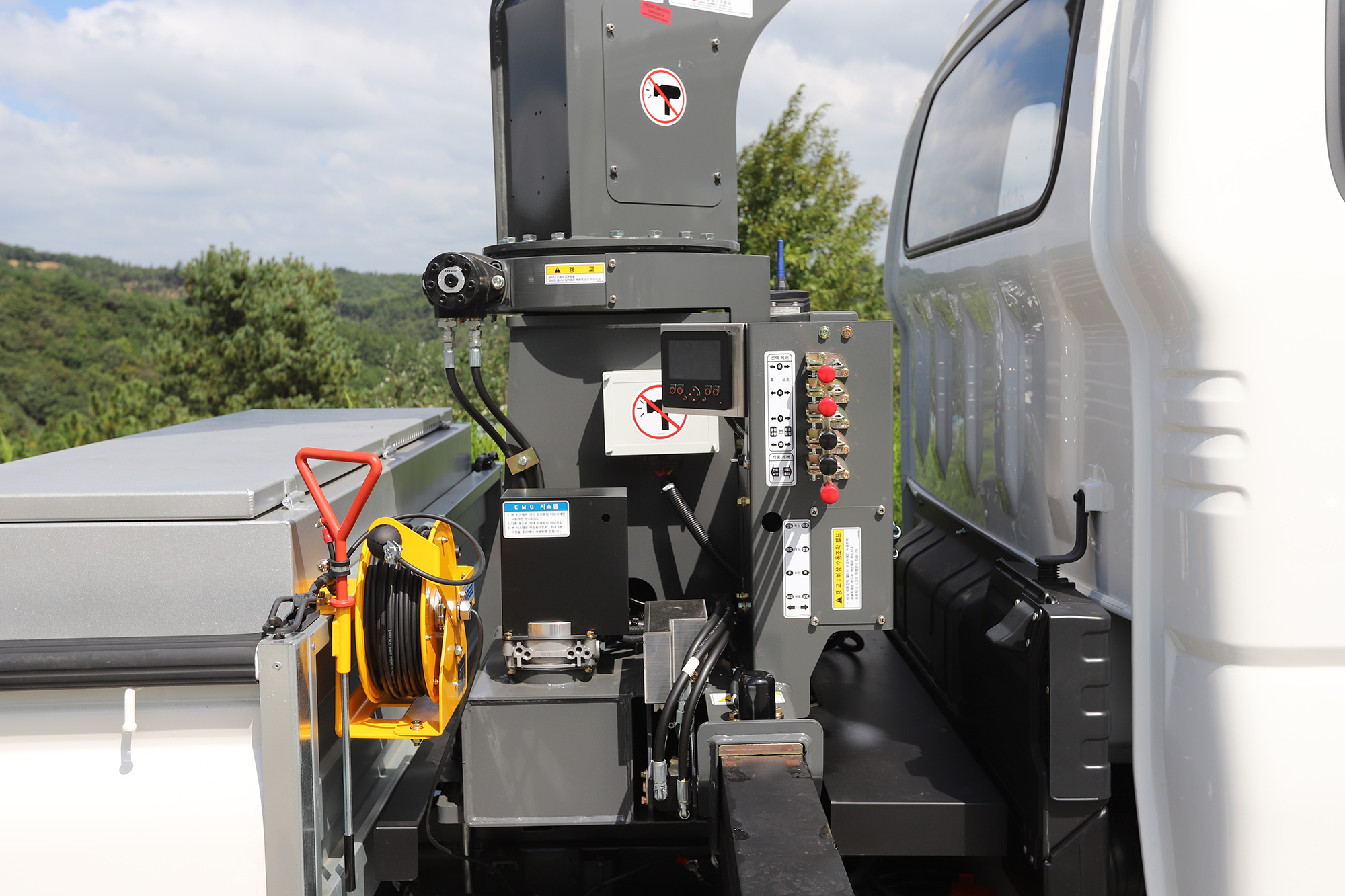

Safety Sensor

Application of safety sensor for safety aerial works

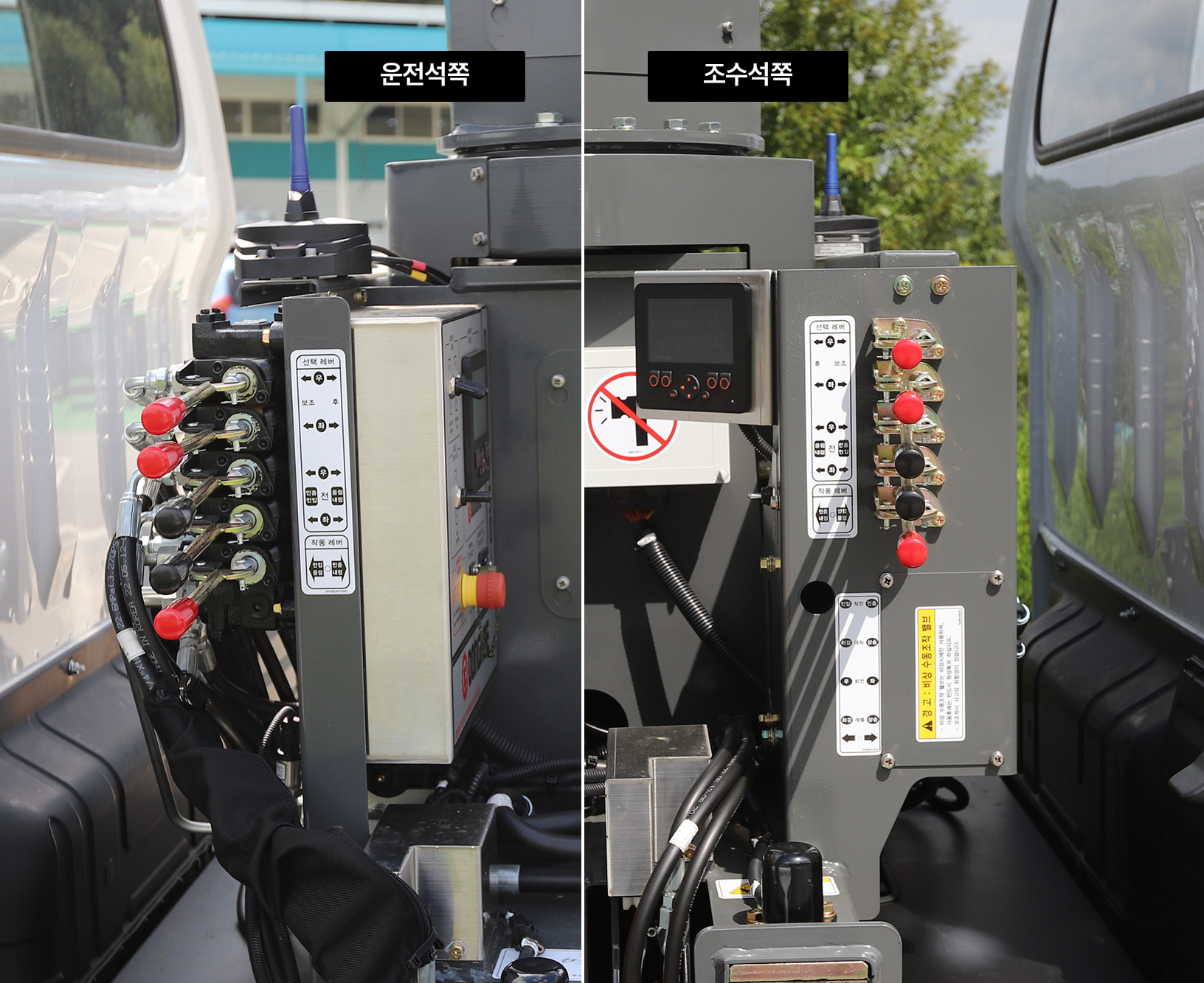

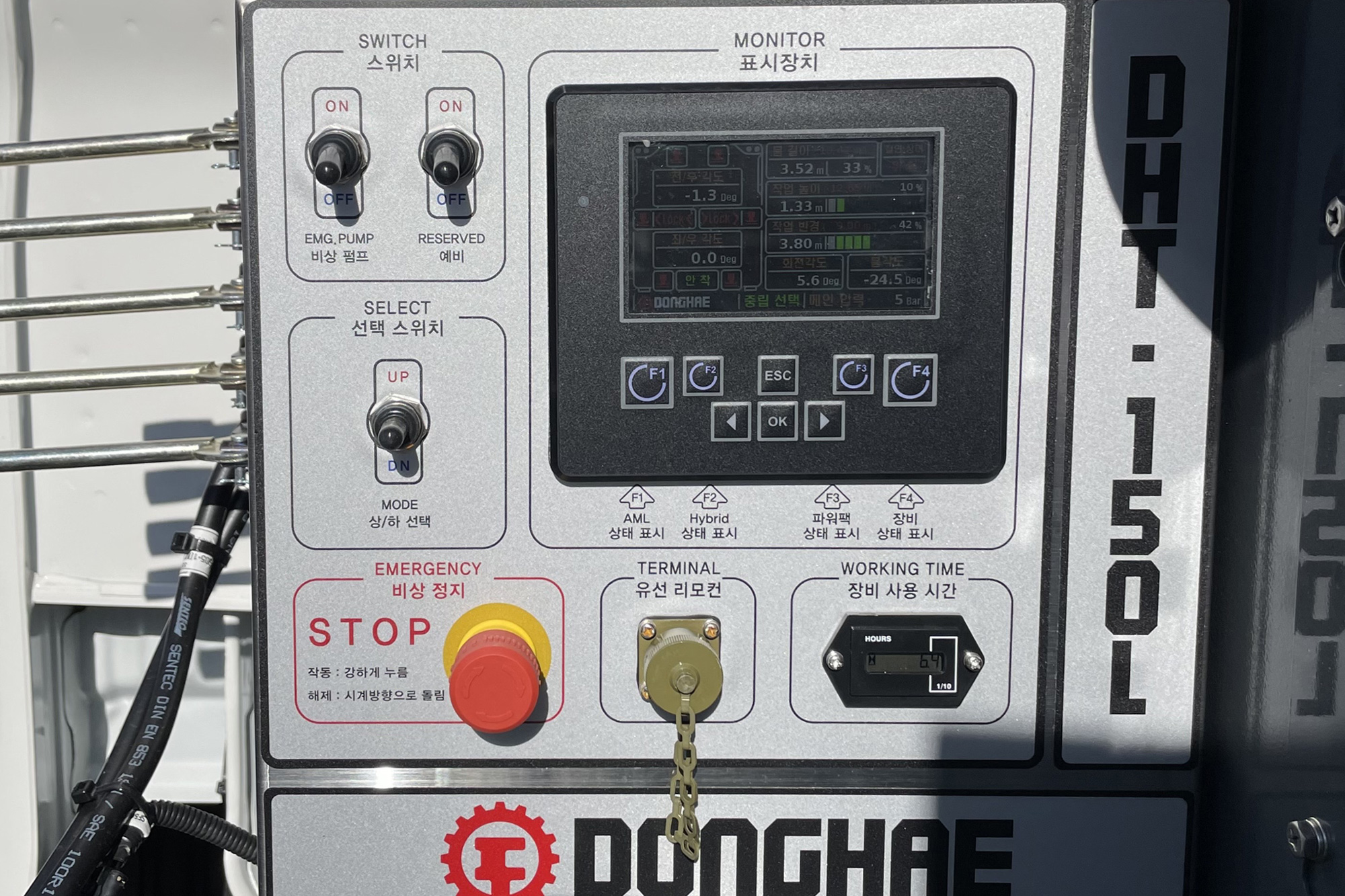

Indicator (driver side)
Displays overall operation status
Indicator (passenser side)
Displays overall operation status
Specification

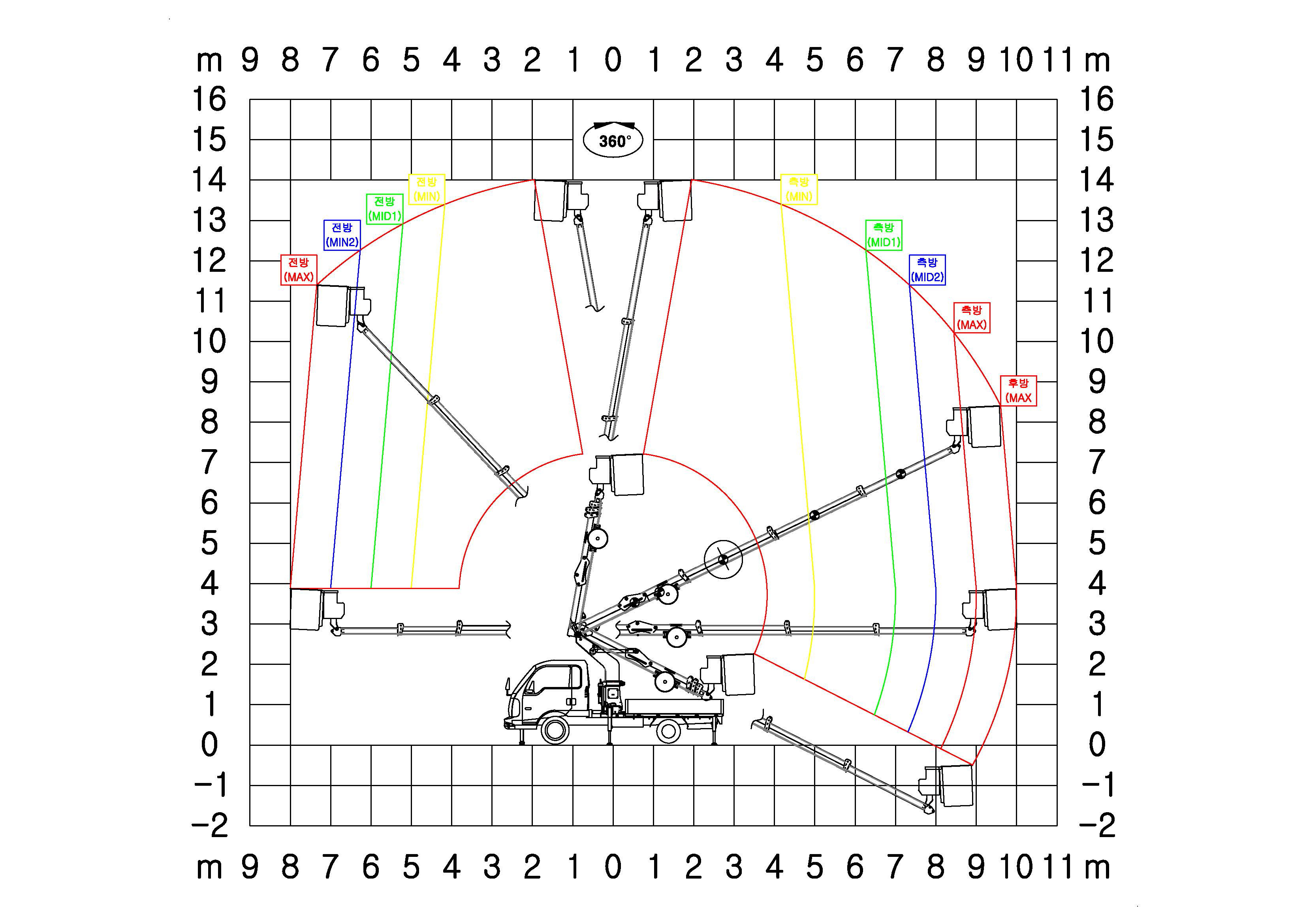

작업범위도 (1person)

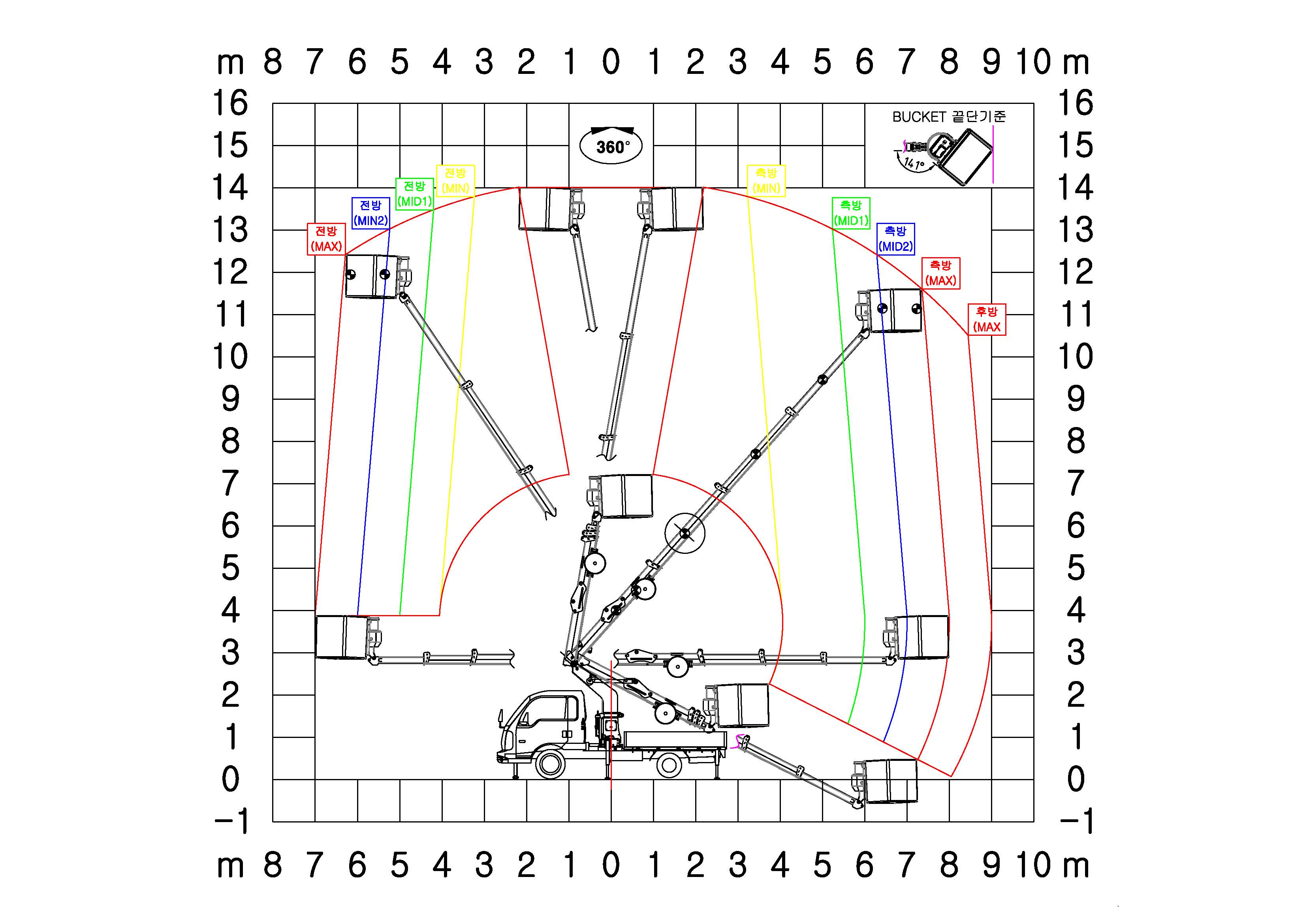

작업범위도 (2person)
  • Mounting chassis
    * customized to local chassis
    KIA BONGO3
  • Chassis dimension
    Length(L)
    5780mm
    Width(W)
    1750mm
    Height(H)
    2950mm
  • Working range
    Height(ground to bucket floor)
    13M
    Max. working radius
    8M
  • Slewing angle
    360 non-continuous
  • Boom section
    4section
  • Bucket capacity
    Capacity
    2person
    Loading
    200kg
    Rotation
    ±90°
  • Outrigger type
    X-type/sub FRT
    H-type FRT/RR

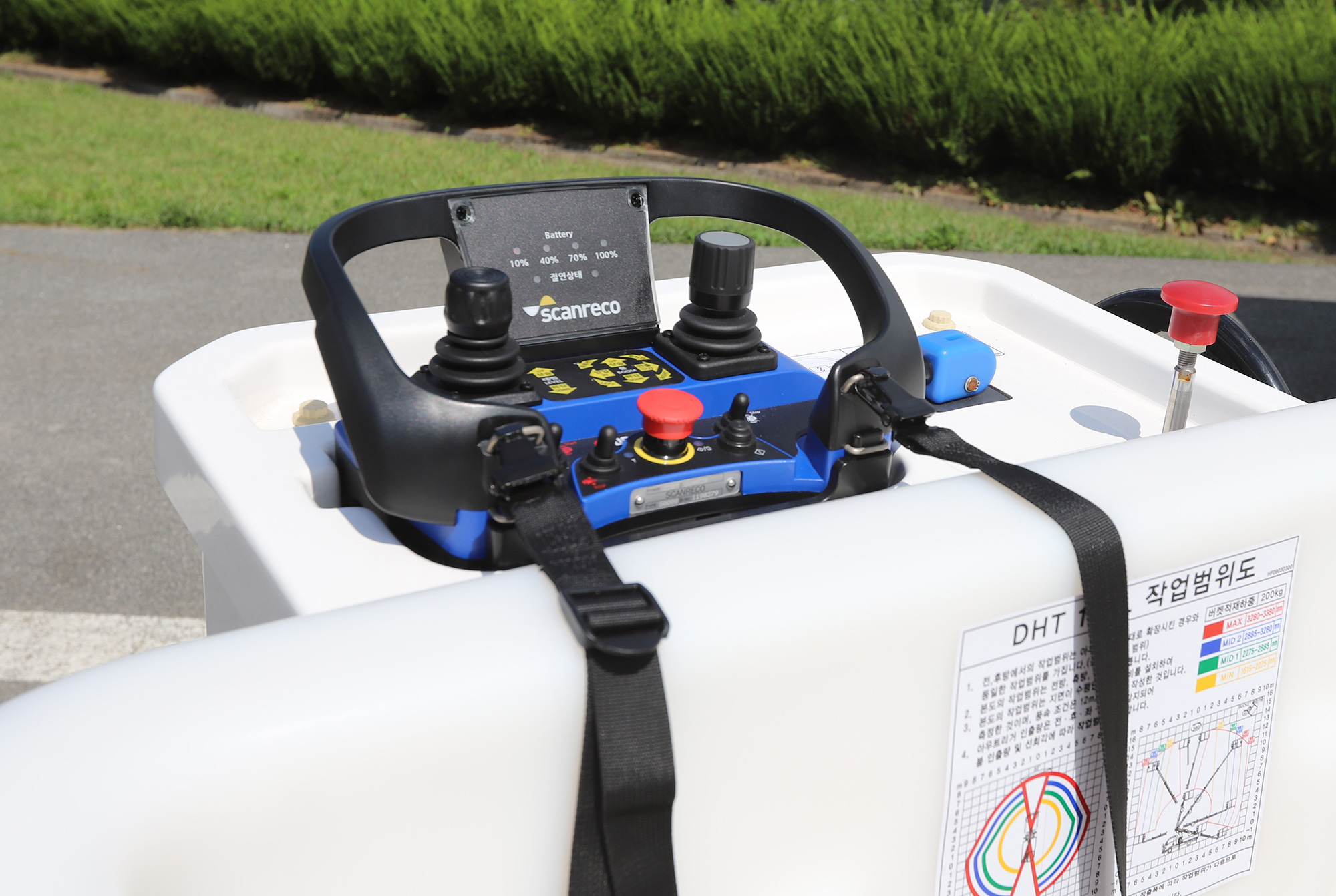

  • Operation system
    Wire/Wireless controller(2ways)
  • Arm boom
    X
  • lifting capacity
    X
  • Test voltage
    Boom test voltage 100KV /3min
    Bucket outer test voltage 20KV / 3min
    Bucket inner test voltage 50KV / 1min
  • Insulation category
    C
