DHAS 120AP Aerial Platform
DHAS 120AP
Aerial Platform
11.3M Working
Height
5.9M Working
Radius
200kg Working
Capacity
Aerial work platform mounted on the pick up truck

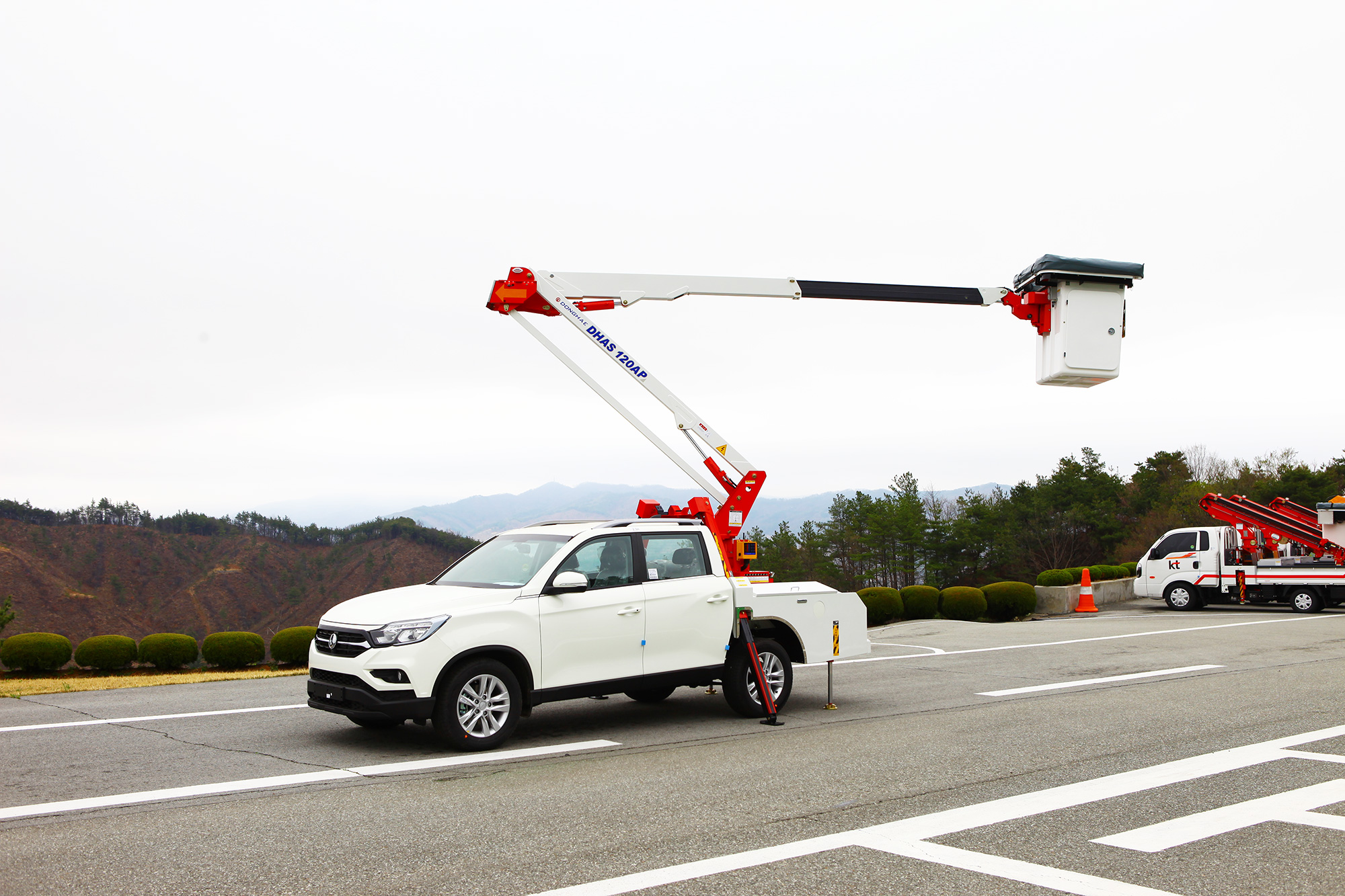

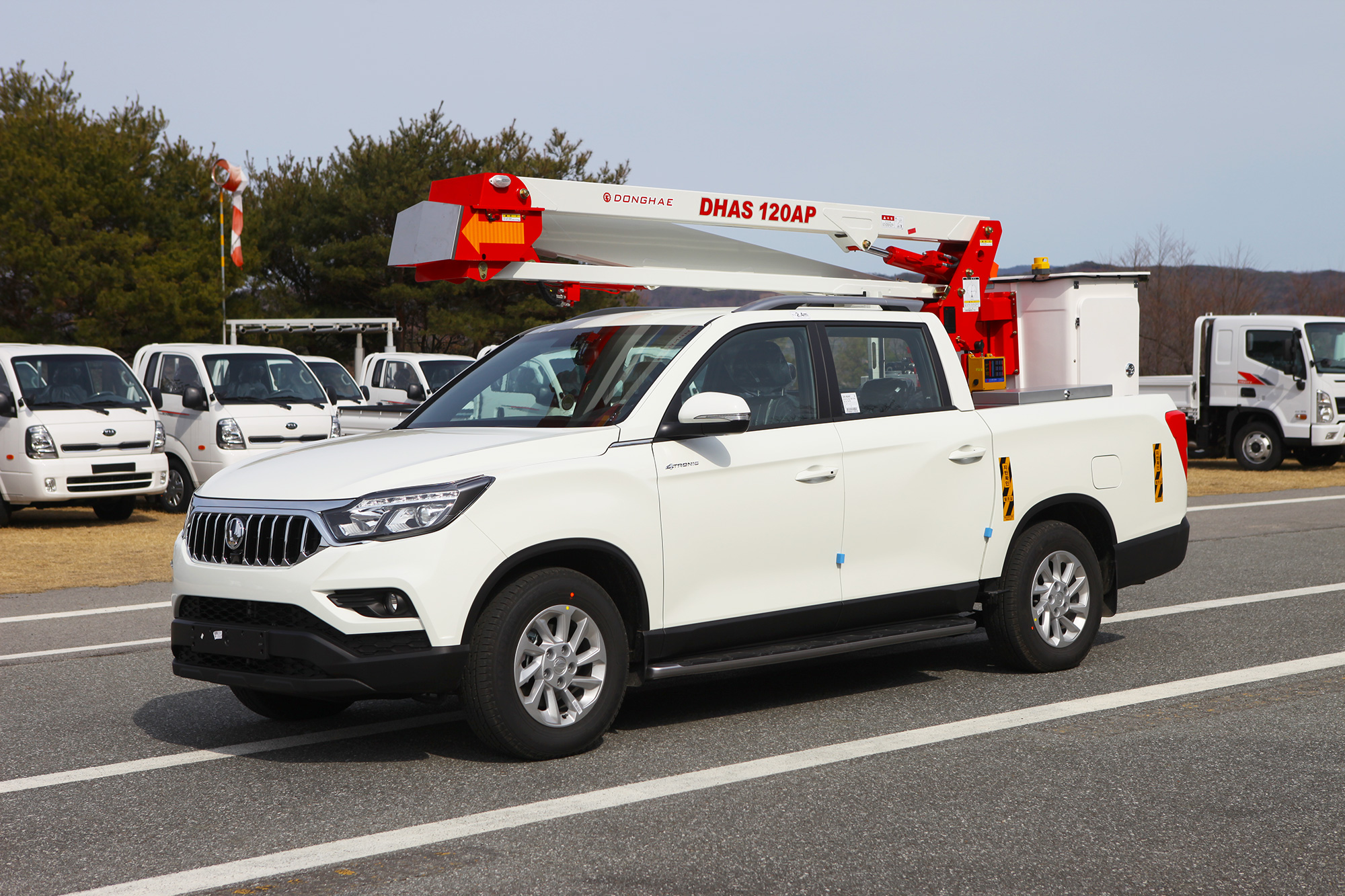

Vehicle Photo

Aerial Platform DHAS 120AP

Outline
  • KCs safety certification
    Safety certification for protective devices in 2021
  • Safety
    Safer work with interlock system, smart cushion, speed control system, etc.
  • Convenience Device

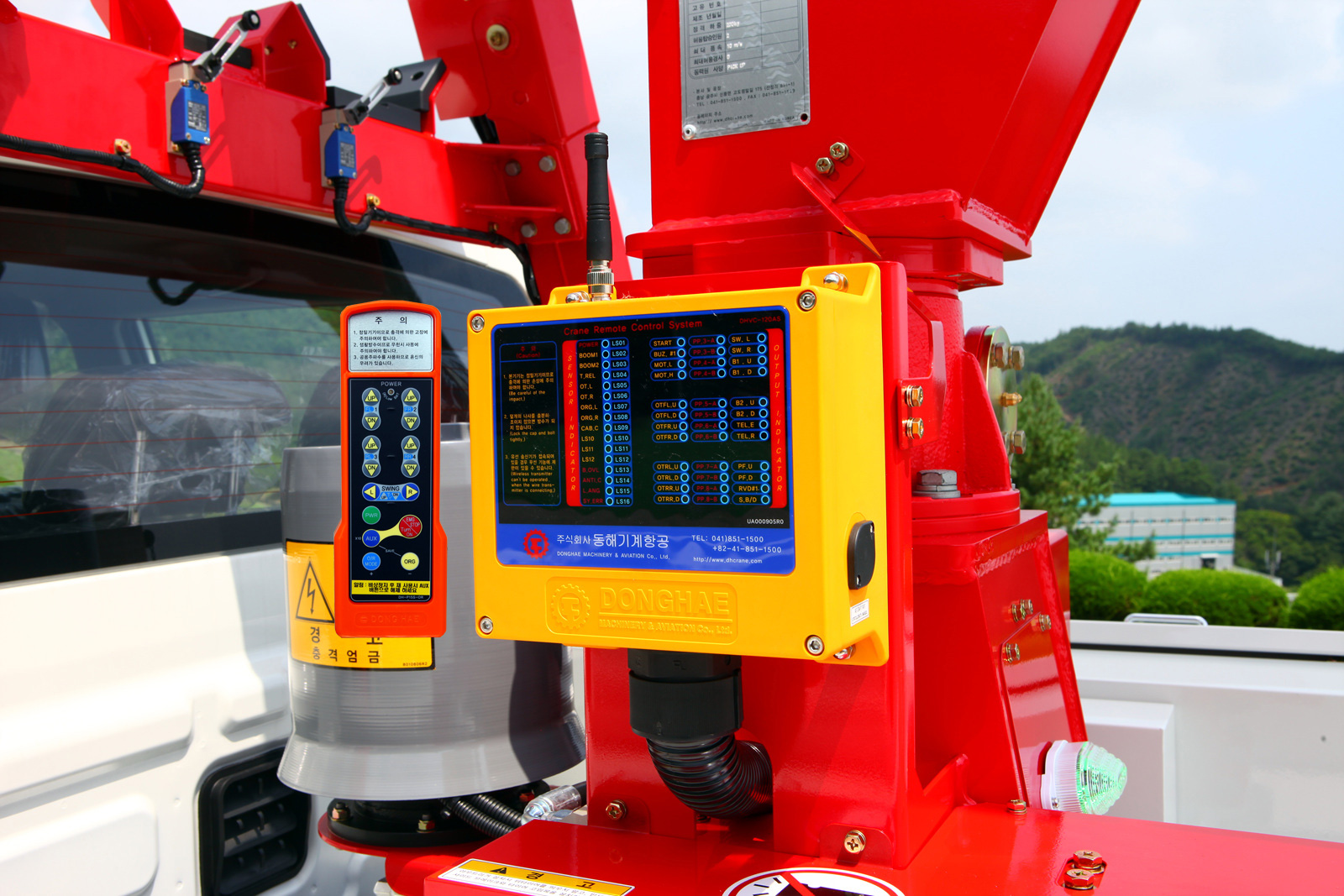

    A remote control system that integrates differentiated know-how and technology

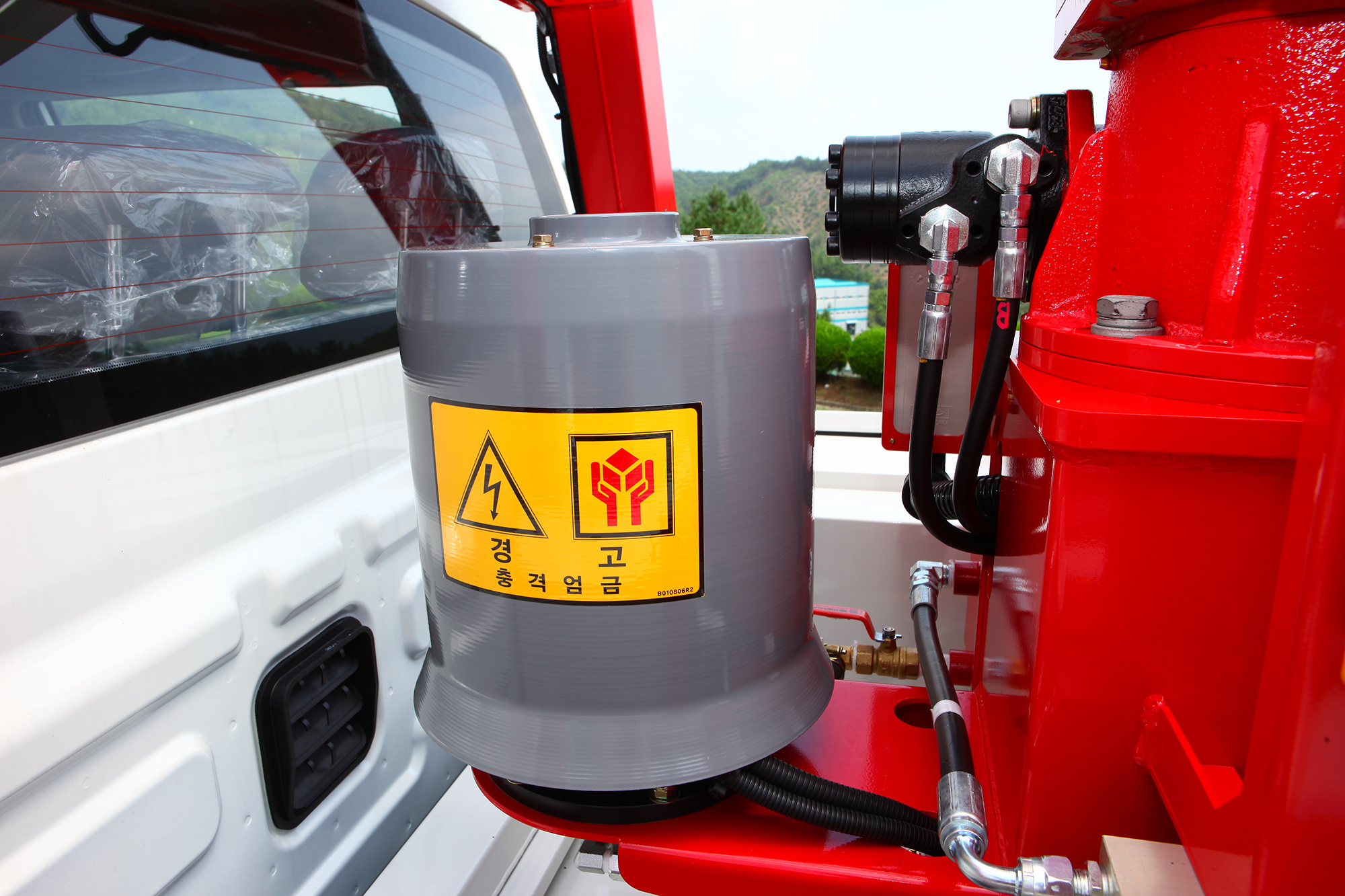

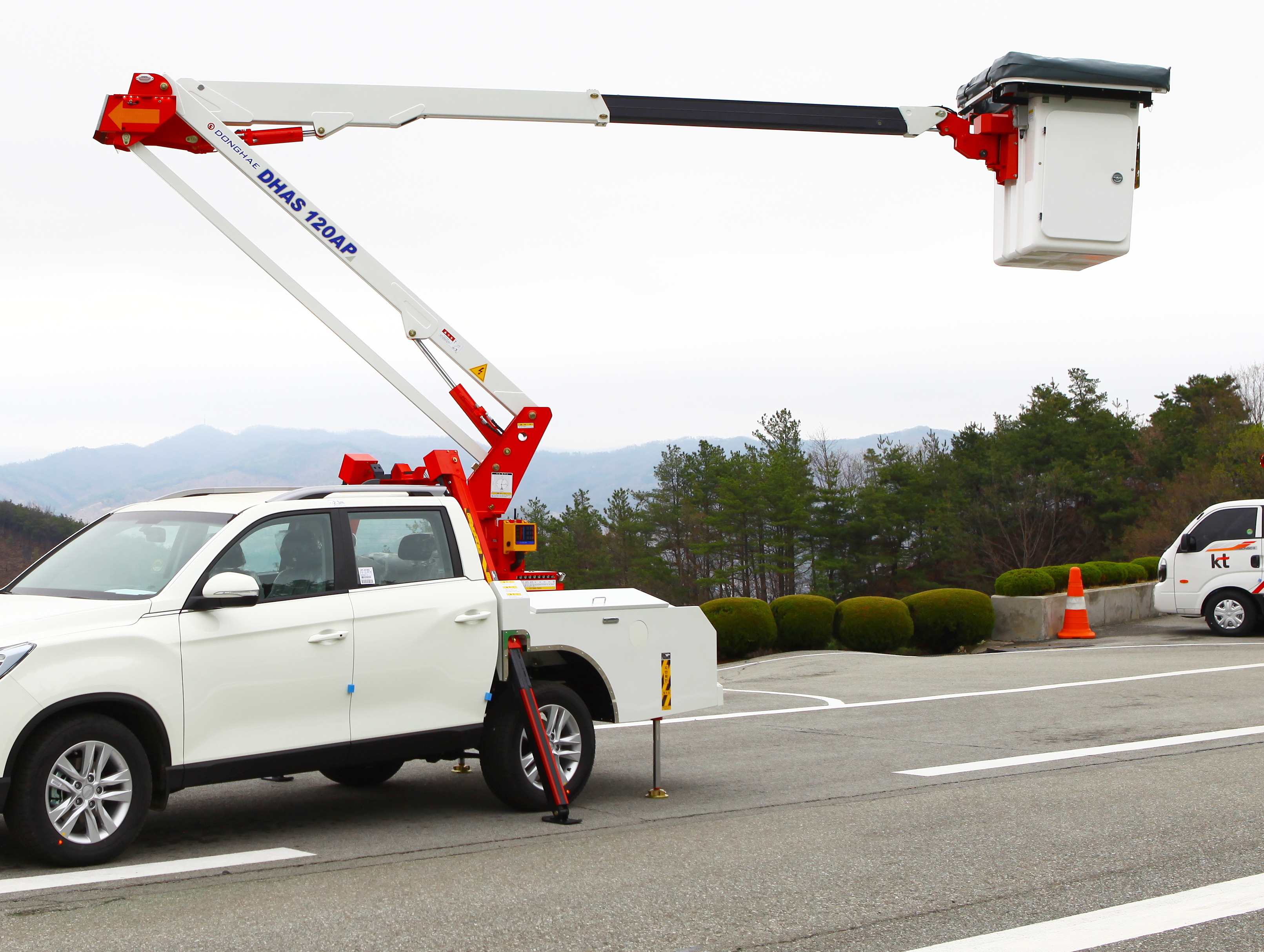

Exterior

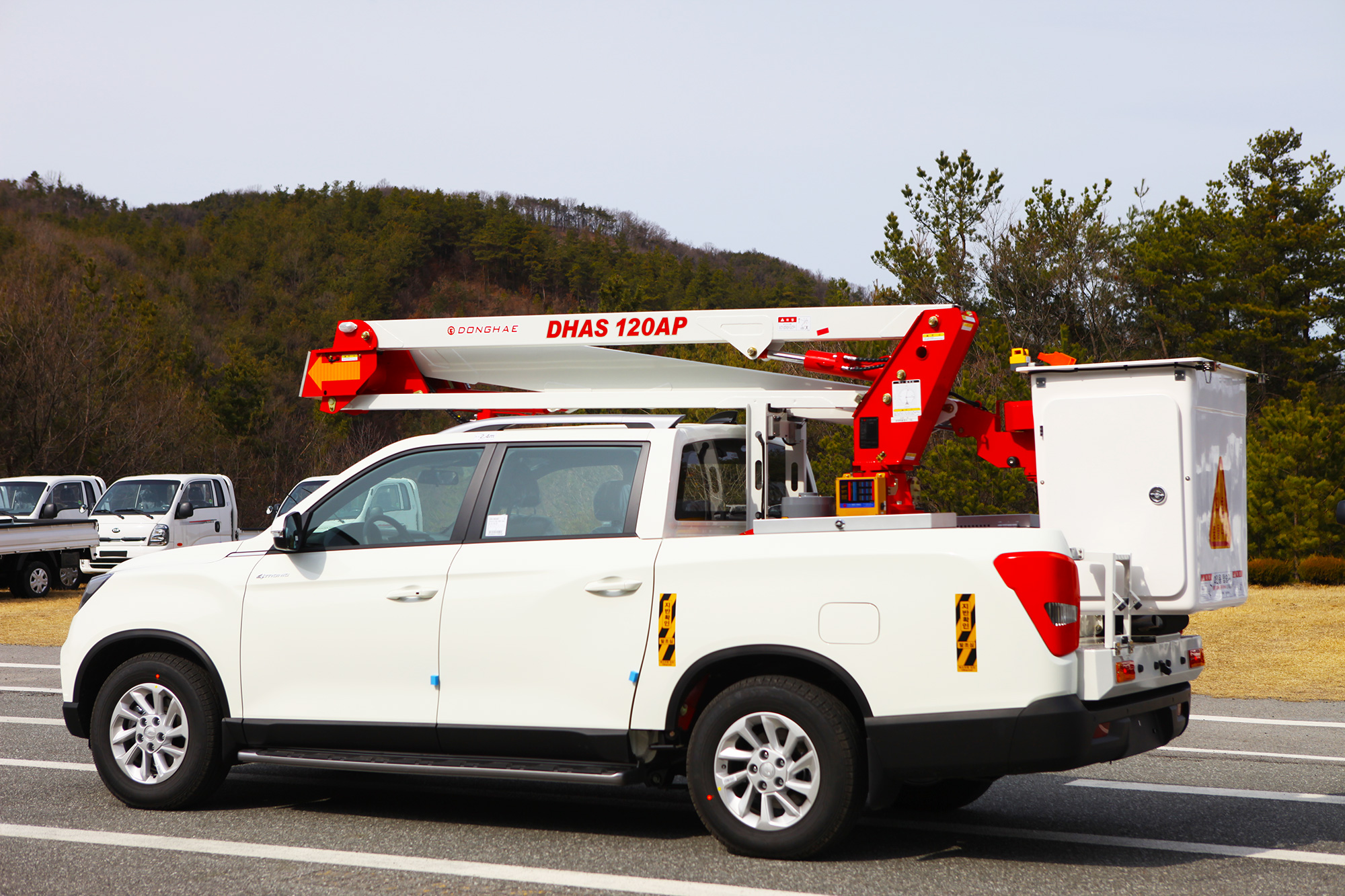

Aerial work platform mounted on the pick up truck

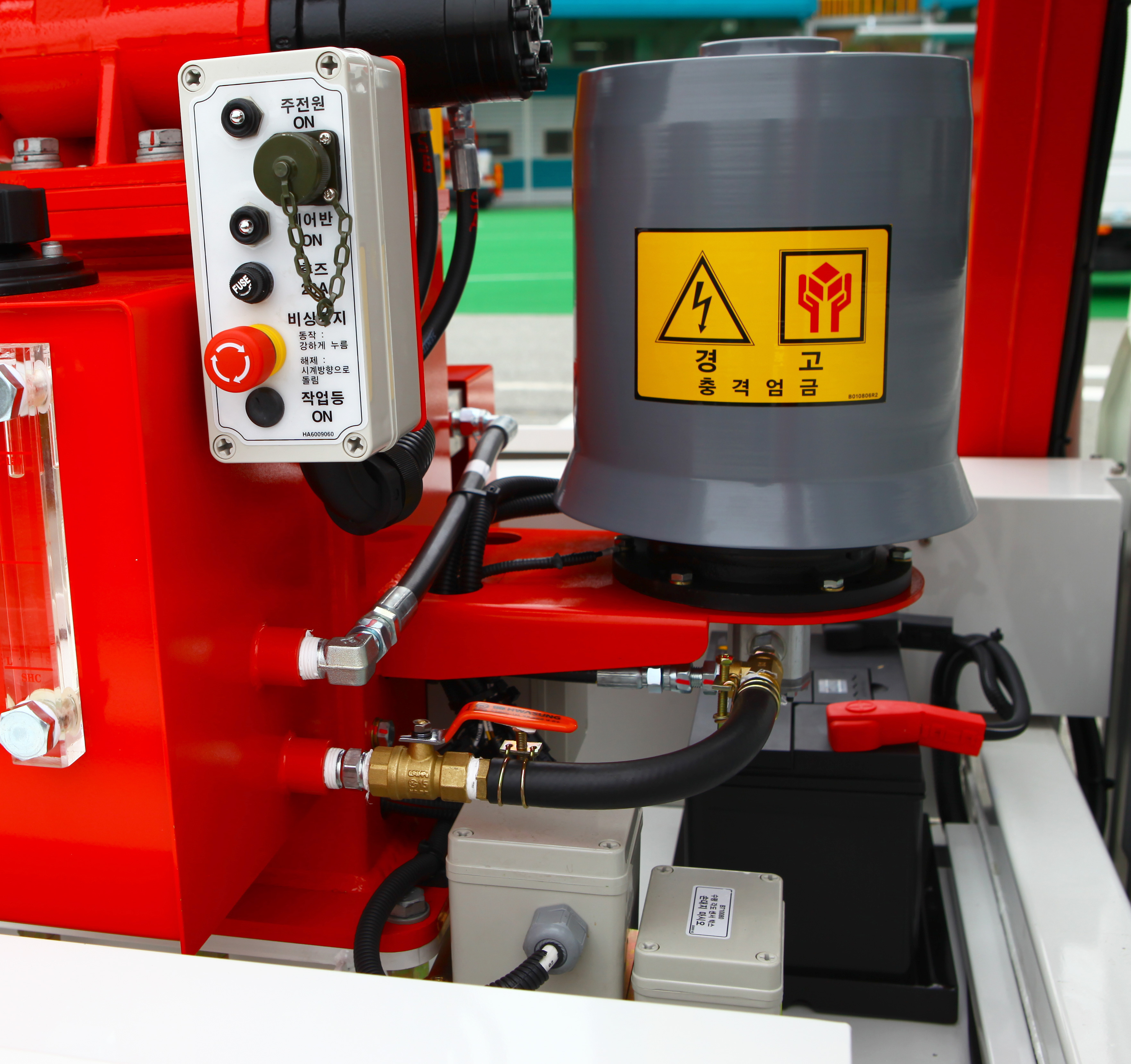

Safety Sensor

Application of safety sensor for safety aerial works

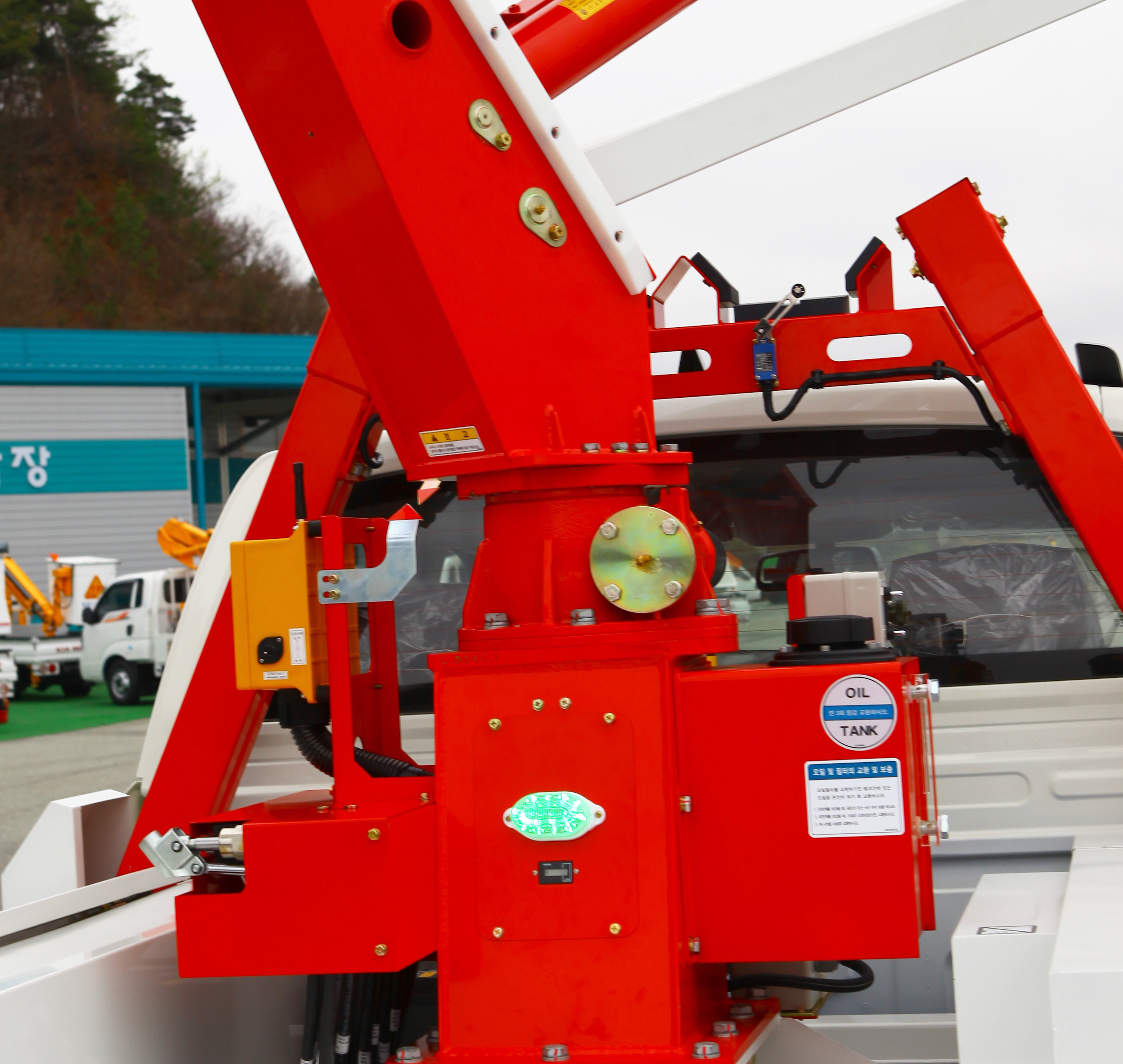

Interlock device
A device that allows the outrigger to operate only when the boom is in the stationary state.
Safety sensor with safety certification
Prevents rollover by limiting the work range through safety sensors

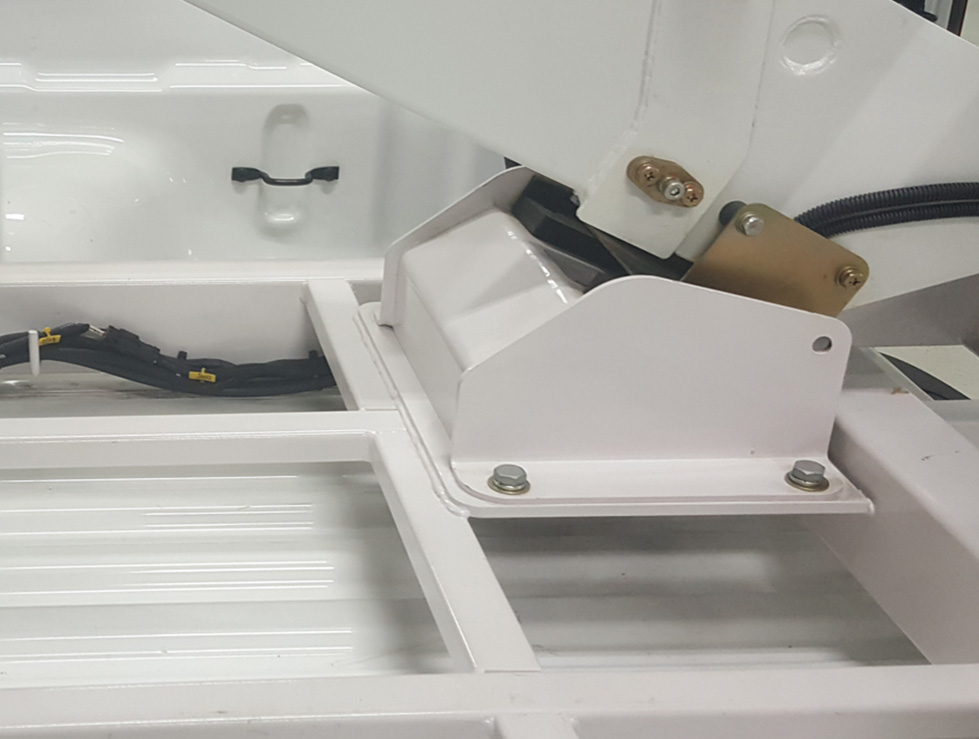

Detection device
Bucket resting detection device
Specification
  • Dimension
    Length(L)
    4498㎜
    Width(W)
    1100㎜
    Height(H)
    1496㎜
  • Vehicle for Mounting
    Permissible vehicle for mounting
    Not less than GVW 3,315kg PICK UP TRUCK
  • Boom
    Operation method
    Hydraulic cylinder
    Boom type
    1 stage-Articulated /
    2,3,4 Stages - Telescopic
    Material
    DOMEX 700 ( 1,2,3 Stages)
  • Max Working Range
    Max Working Height
    11.3M (9.3M - To the buckett floor)
    Max Working Radius
    5.9M - 120kg / 5M / 200kg
  • Rotation Device
    Rotation Device
    Hydraulic motor
    Rotaion Angle
    330°(Defined)
  • Operation Method
    Wire/ Wireless remote controllers
  • Hydraulic Operation
    DC-MOTOR

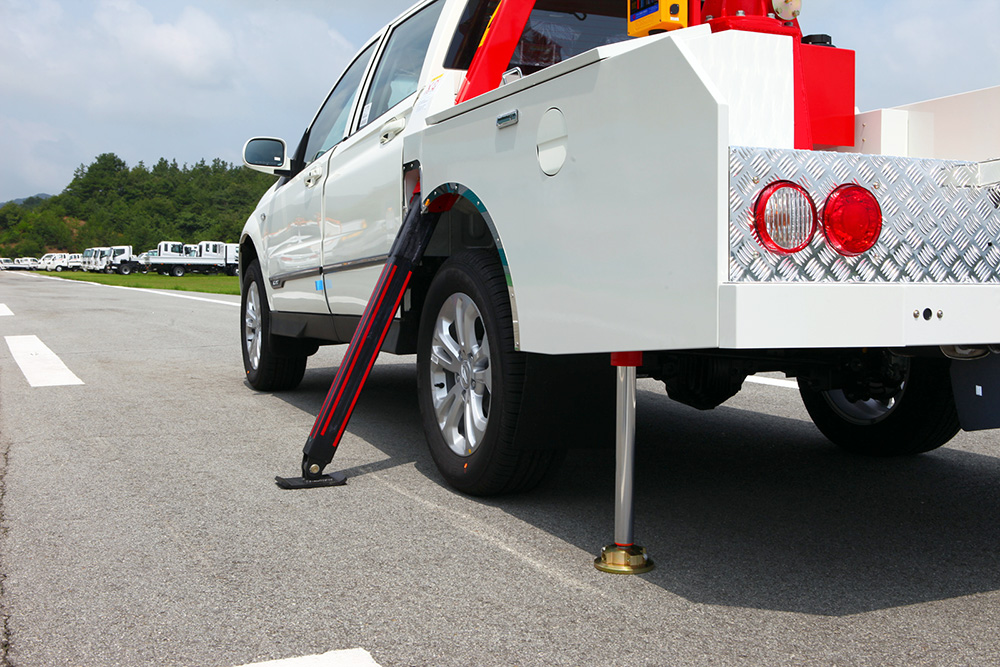

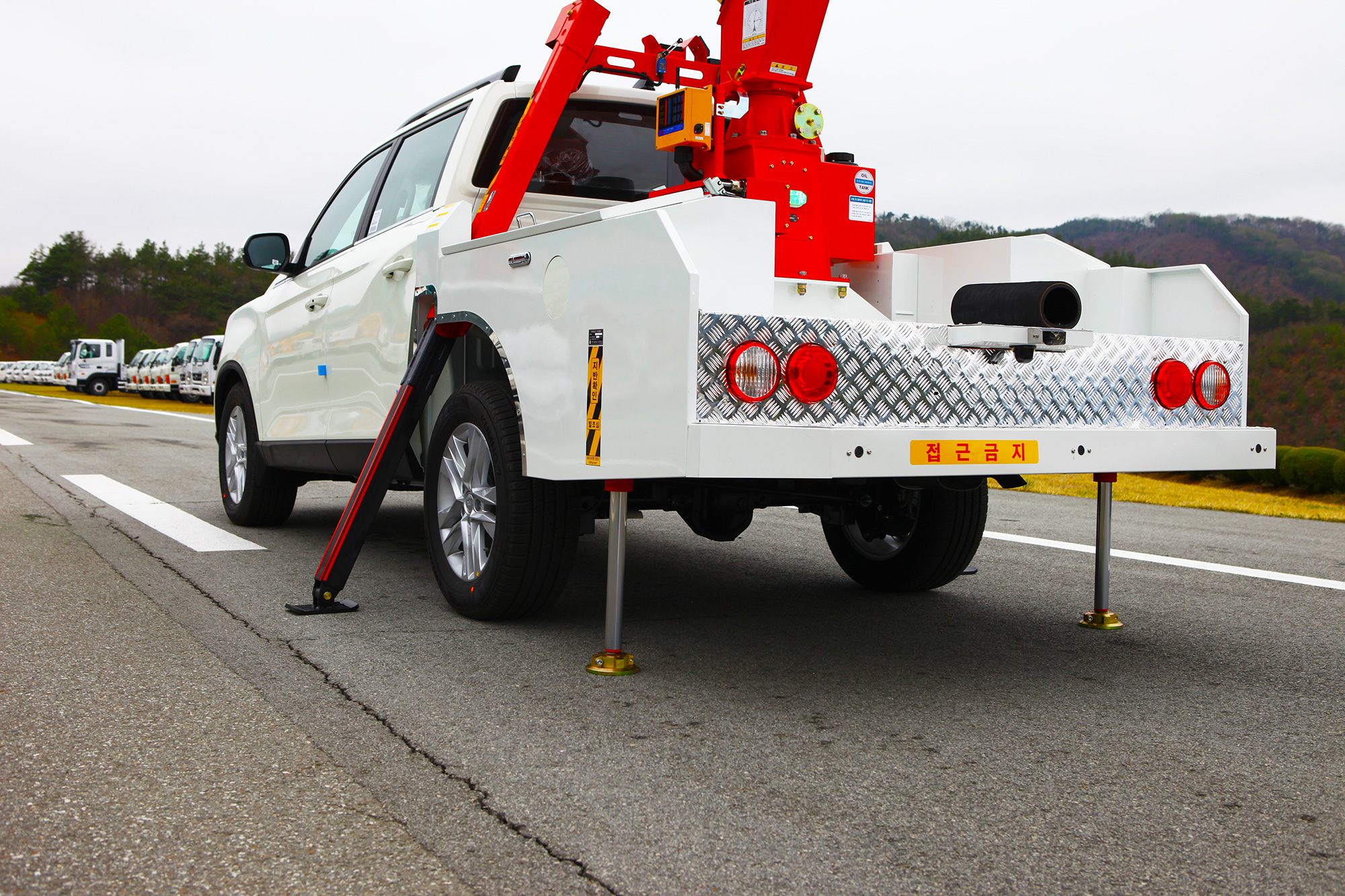

  • Frotn Outrigger
    Type
    A-Type (Vertical raising / lowering)
    Max Span
    2.6M
  • Rear Outrigger
    Type
    A-Type (Vertical raising / lowering)
    Max Span
    2.6M

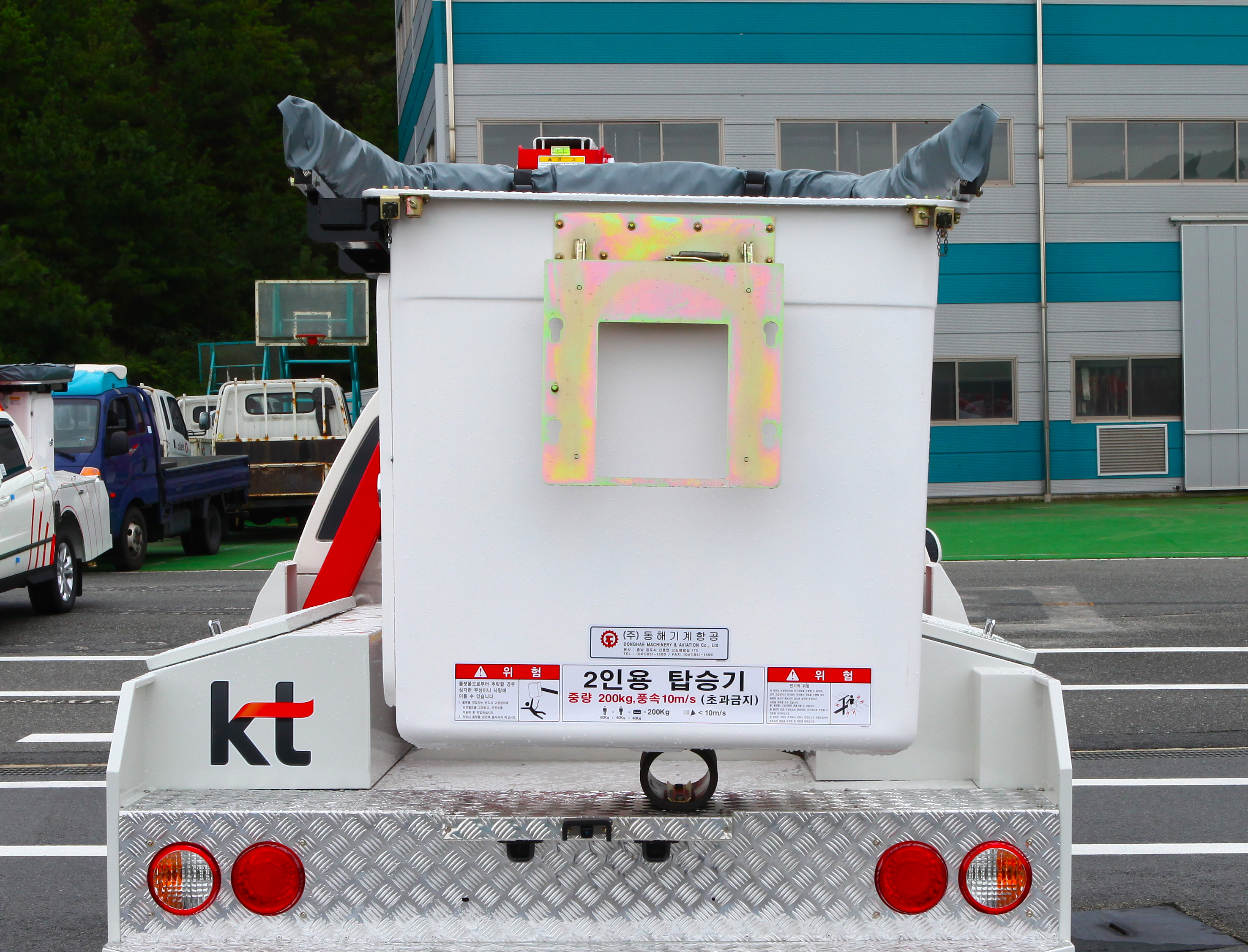

  • Bucket
    Type
    FRP for 2 person
    Rotaion Angle
    180° / Manual handle
    Method of Keeping Level
    Automatic leveling
    Capacity
    2 person : 200kg (Including person)
    Size
    1000(L) x 645(W) x 1010(H)
  • Oil Type / Capacity
    NEW RANDO HD CZ #46(Summer) / HDZ #22 (Winter) 15L
  • Safety Devices
    • Turning angle detection devic
    • Boom angle sensor
    • Overload detection device
    • O/T landing detector
    • Emergency stop device
    • Emergency hydraulic device
    • Interlock system
    • Warning and alarm devices
